Steering Wheel Spoke Cover Replacement

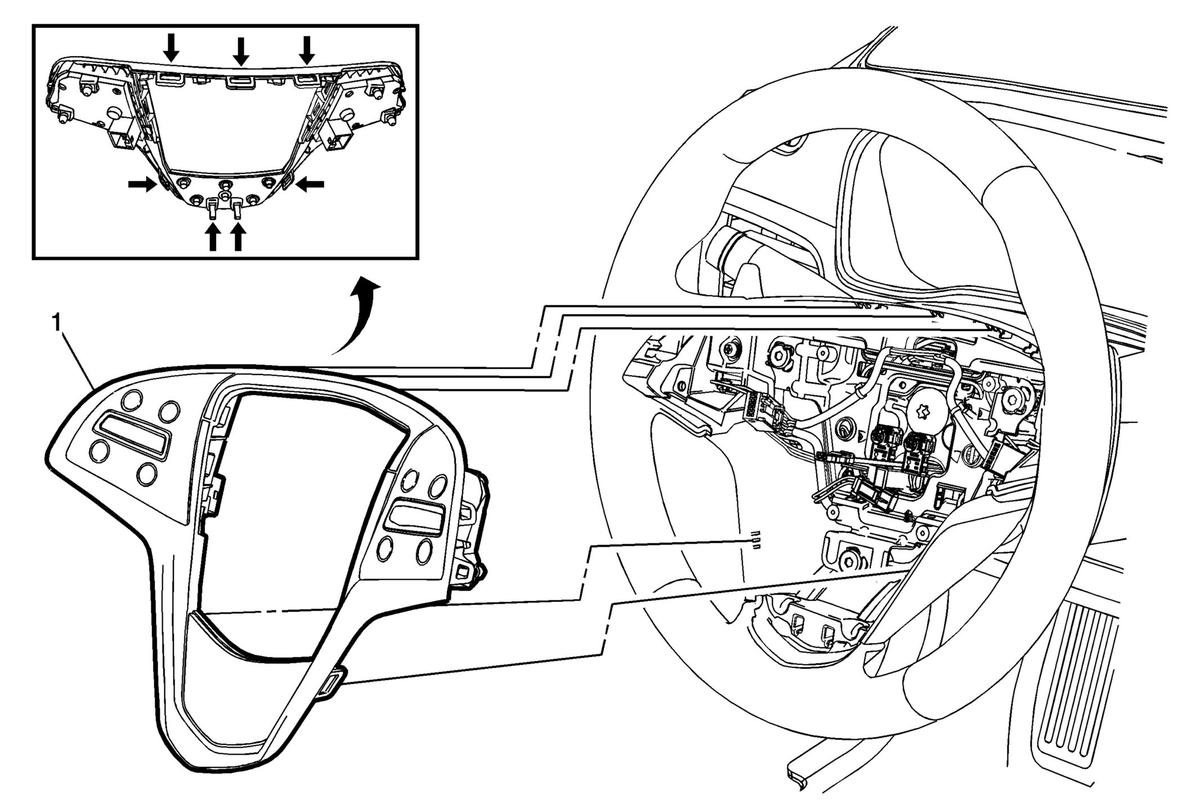

GM3458881Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1 Steering Wheel Spoke Cover

Procedure

  1. Use the appropriate tool to release the retaining tabs on the cover.
  2. Disconnect the electrical connections.
  3. Transfer components as necessary.
