Removal Procedure

  1. Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .
  2. Remove the screw (1) that retains the rear side door outside bracket to the door (2).
    GM2755842Courtesy of GENERAL MOTORS COMPANY
  3. Remove the outside handle bracket (1) and the rear side door latch (2) assembly from the vehicle as one. Refer to Rear Side Door Latch Replacement .
    GM2725373Courtesy of GENERAL MOTORS COMPANY

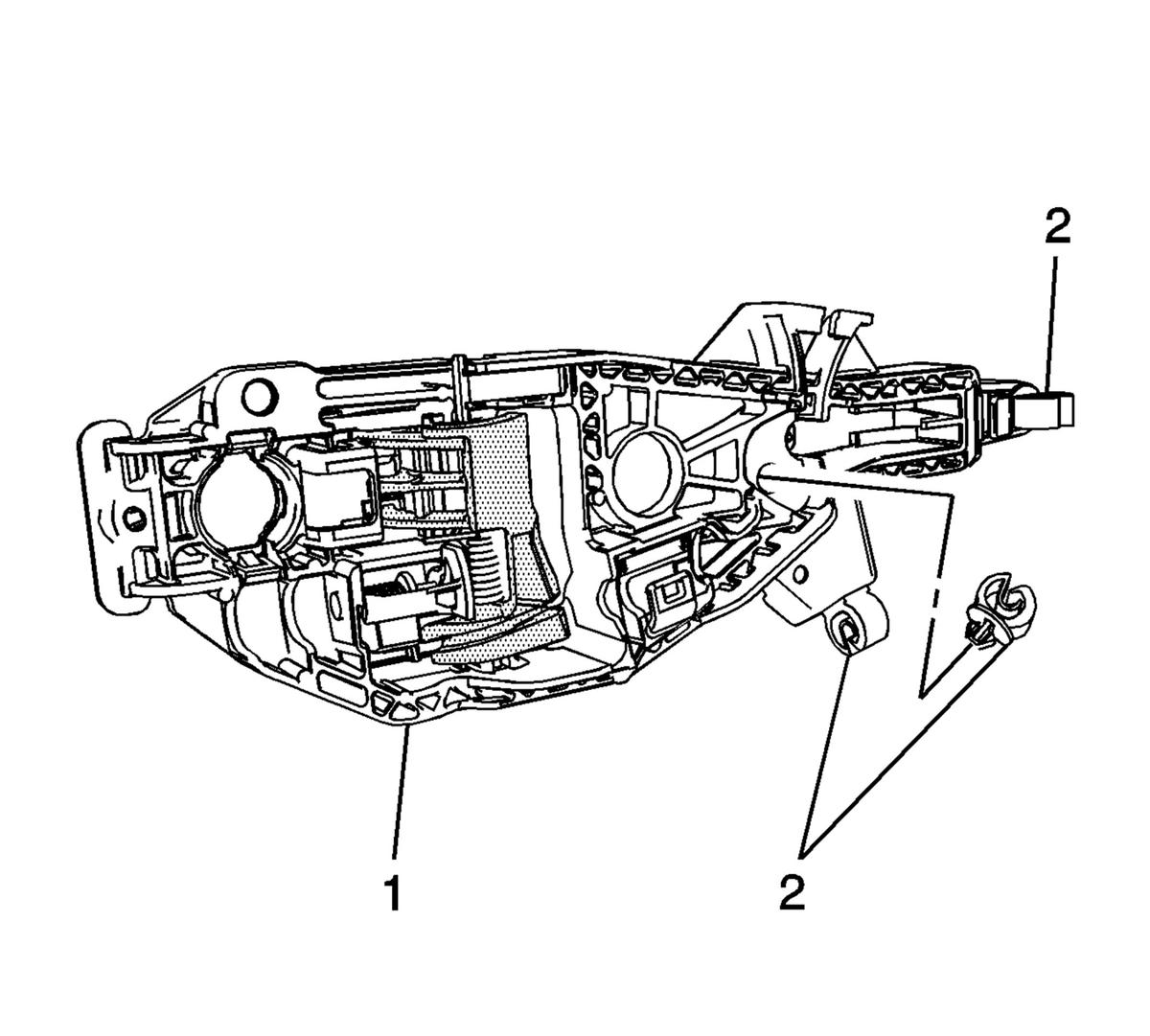

  4. Remove the rear side door outside handle cable from the bracket (1) retainers (2).
    GM2755846Courtesy of GENERAL MOTORS COMPANY
  5. Remove the rear side door outside handle cable. Refer to Rear Side Door Outside Handle Cable Replacement .
  6. Remove the lock cylinder blank from the bracket.
