Rear Compartment Lid Release Switch Replacement (Rear Compartment Lid)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement . Disconnect the rear compartment lid release switch electrical connector

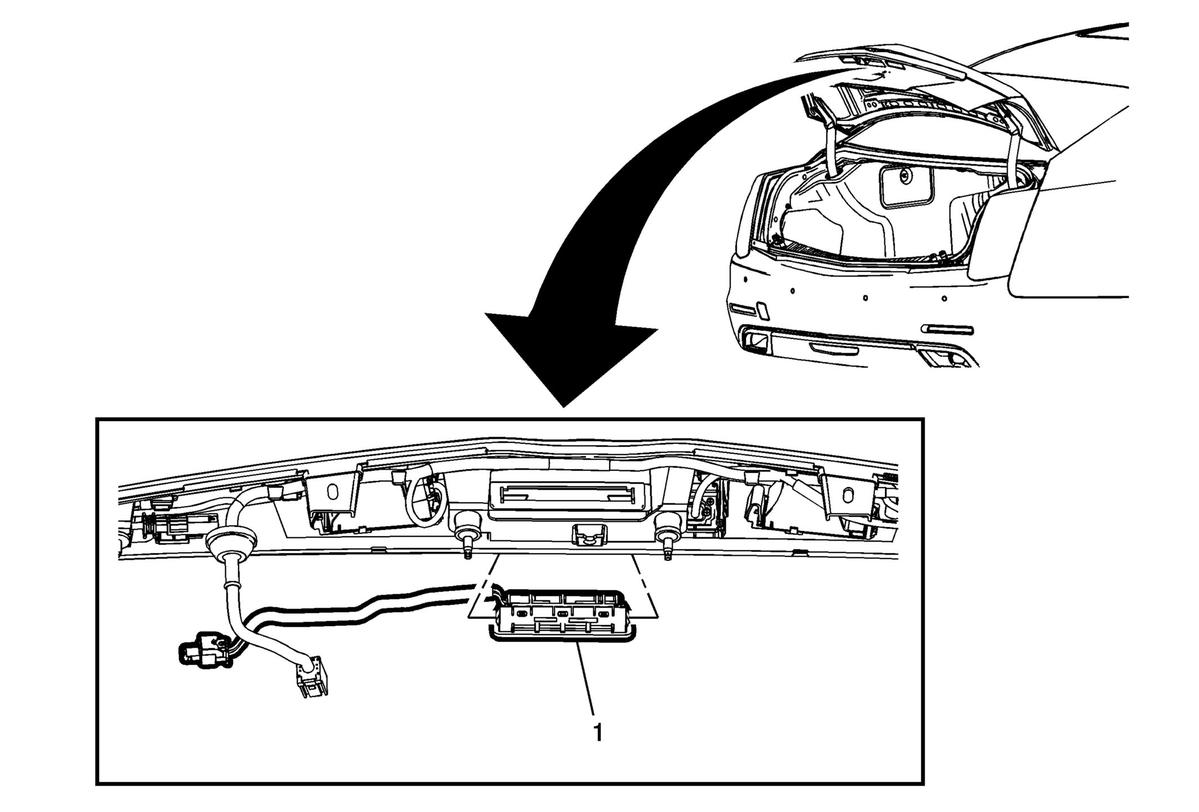

1	Rear Compartment Lid Release Switch Procedure Press in the retainers on the sides of the switch and press the rear compartment lid release switch out from the rear closure center applique.

Callout

Component Name

Preliminary Procedure

Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .
Disconnect the rear compartment lid release switch electrical connector

Rear Compartment Lid Release Switch
Procedure
Press in the retainers on the sides of the switch and press the rear compartment lid release switch out from the rear closure center applique.
