Door Lock Switch Replacement - Driver Side

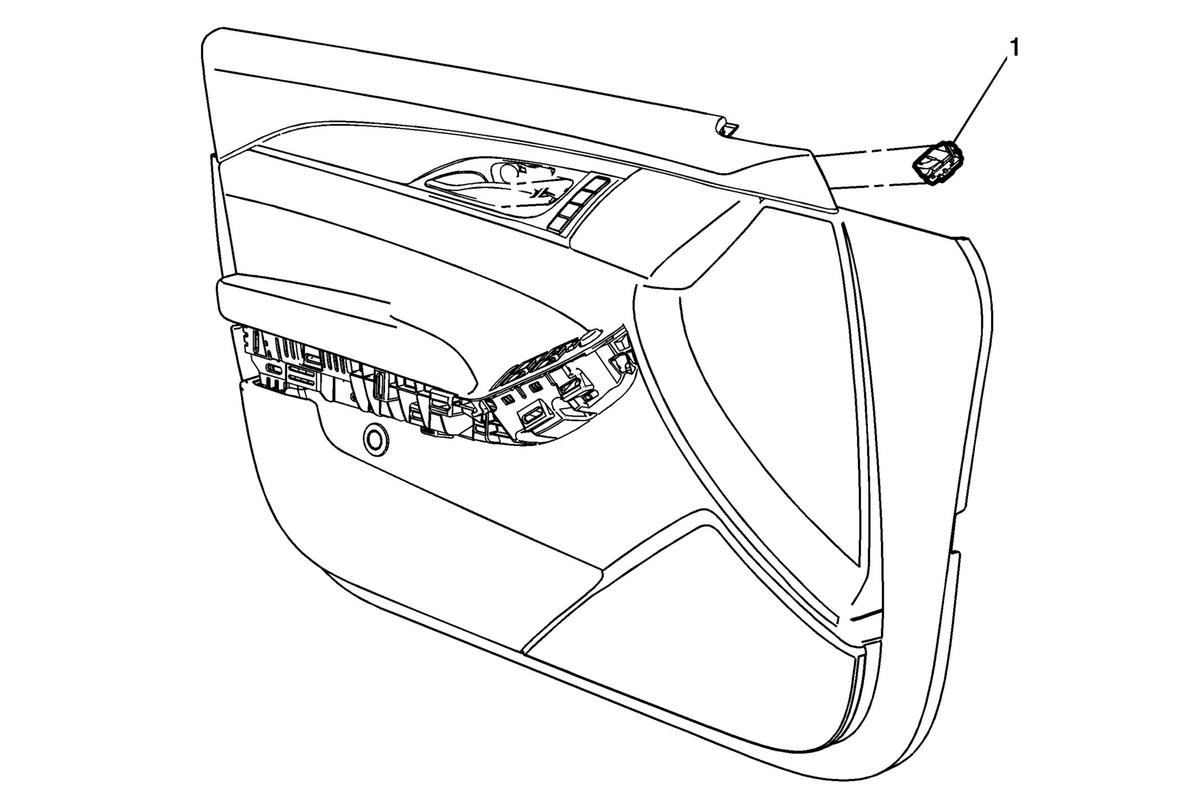

GM3463134Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Reposition insulator, as required.
1 Door Lock Switch Driver Side Assembly

Procedure

  1. Using a plastic pry tool, gently pry on the sides to release the switch.
  2. Disconnect the electrical connectors.
  3. Refer to Control Module References for programming and set up procedures.
