Windshield Wiper Blade Replacement

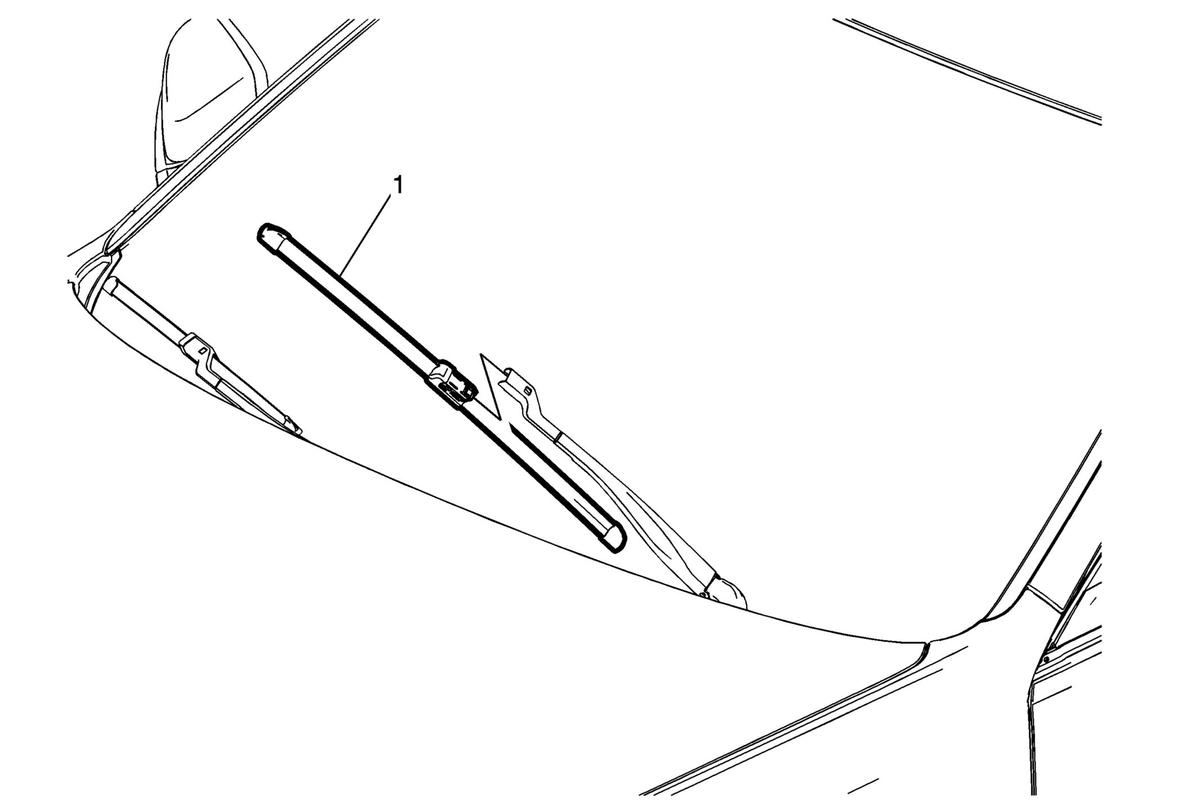

GM3471477Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Wiper Blade

Procedure

  1. Lift the windshield wiper arm from the windshield.
  2. Release the retention tab securing the windshield wiper blade to the windshield wiper arm.
  3. Pull the windshield wiper blade from the windshield wiper arm and remove.
