Windshield Washer Pump Replacement

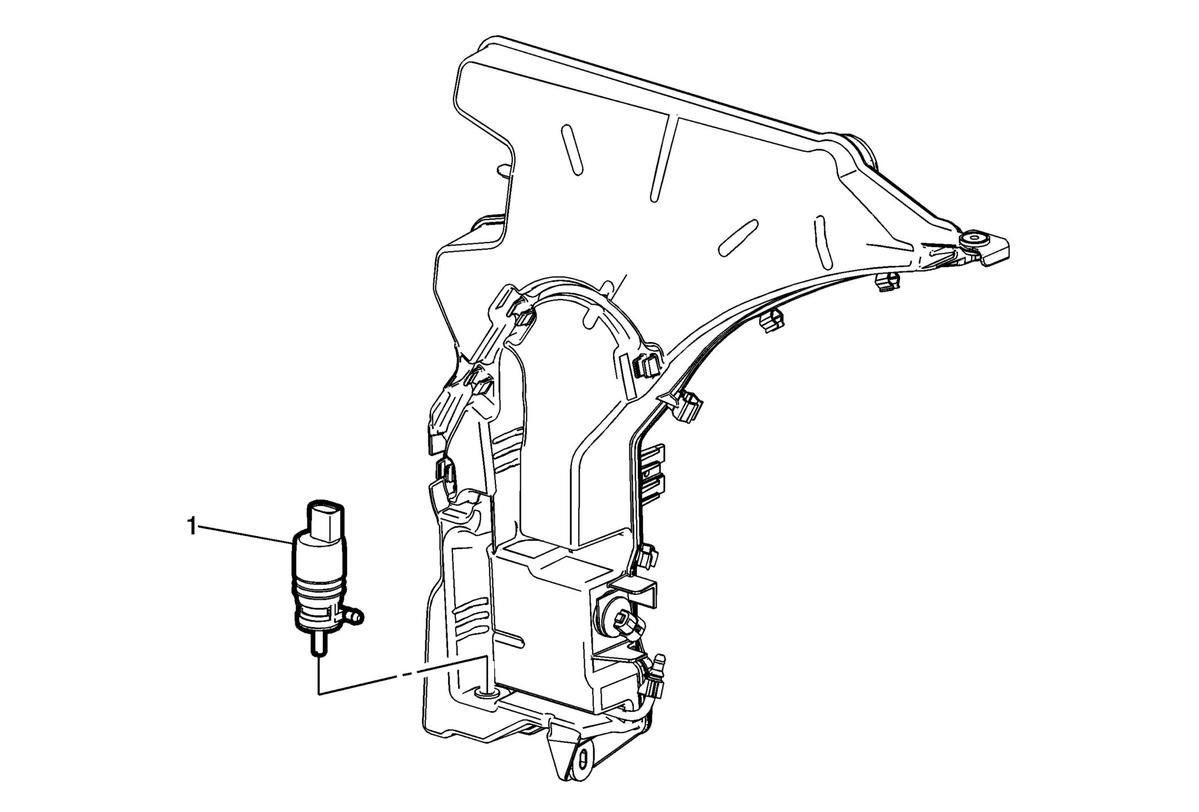

GM3471974

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .

1

Windshield Washer Pump

Procedure

Disconnect the electrical connector from the windshield washer pump.
Using two flat-bladed tools, place the blades under the windshield washer pump seal on each side of washer pump.
Twist the two flat-bladed tools in opposite directions to lift and disengage the windshield washer pump from the windshield washer solvent container.
Install a new windshield washer pump seal upon replacement of the windshield washer pump.
