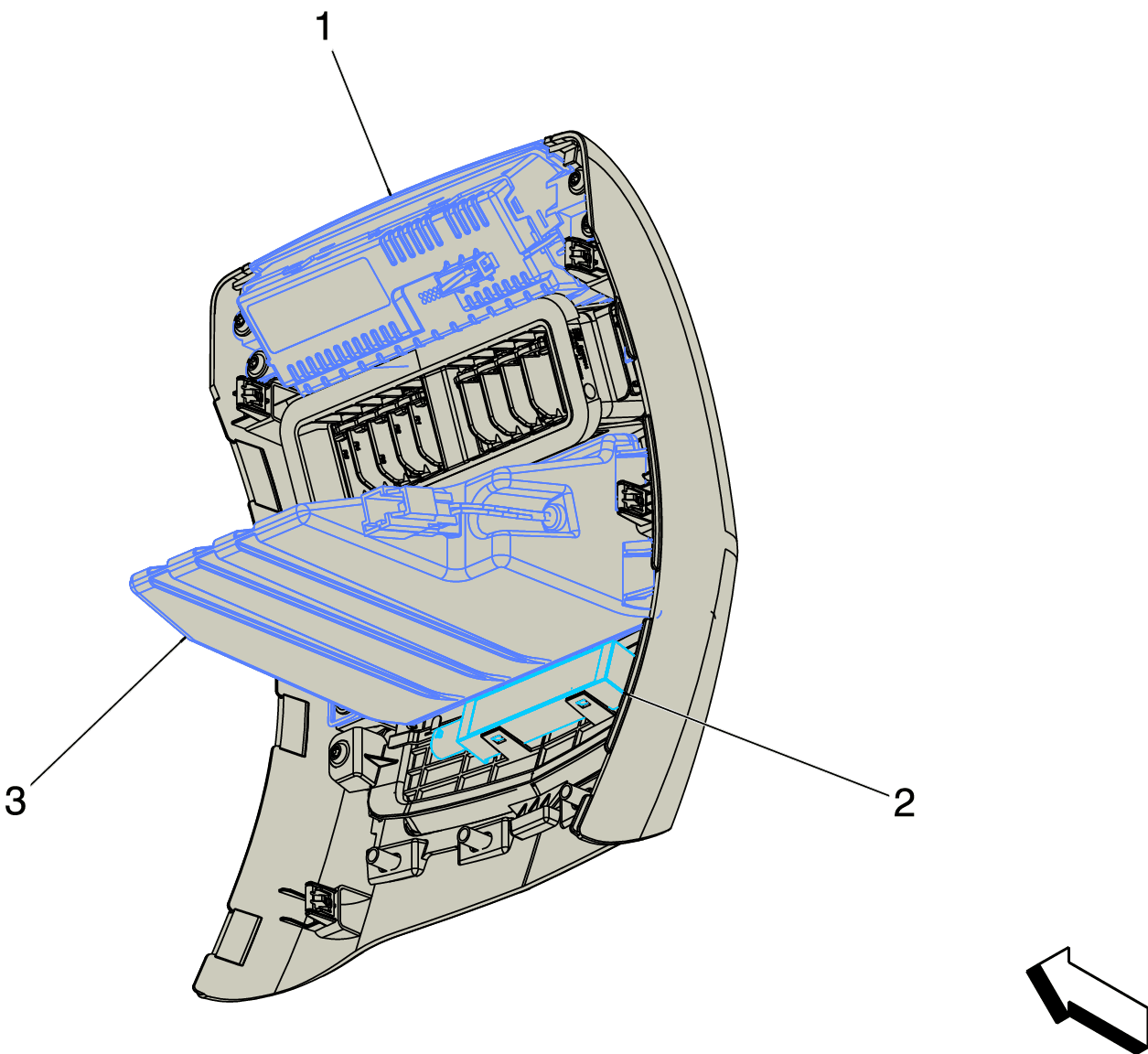

Floor Console Components (3 of 5)

GM5335774Courtesy of GENERAL MOTORS COMPANY
Floor Console Components (3 of 5)

Items
1. A34 HVAC Controls - Auxiliary (C24) A34 HVAC Controls - Auxiliary
2. T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
3. P19A Speaker - Center Console (UQH) P19A Speaker - Center Console
