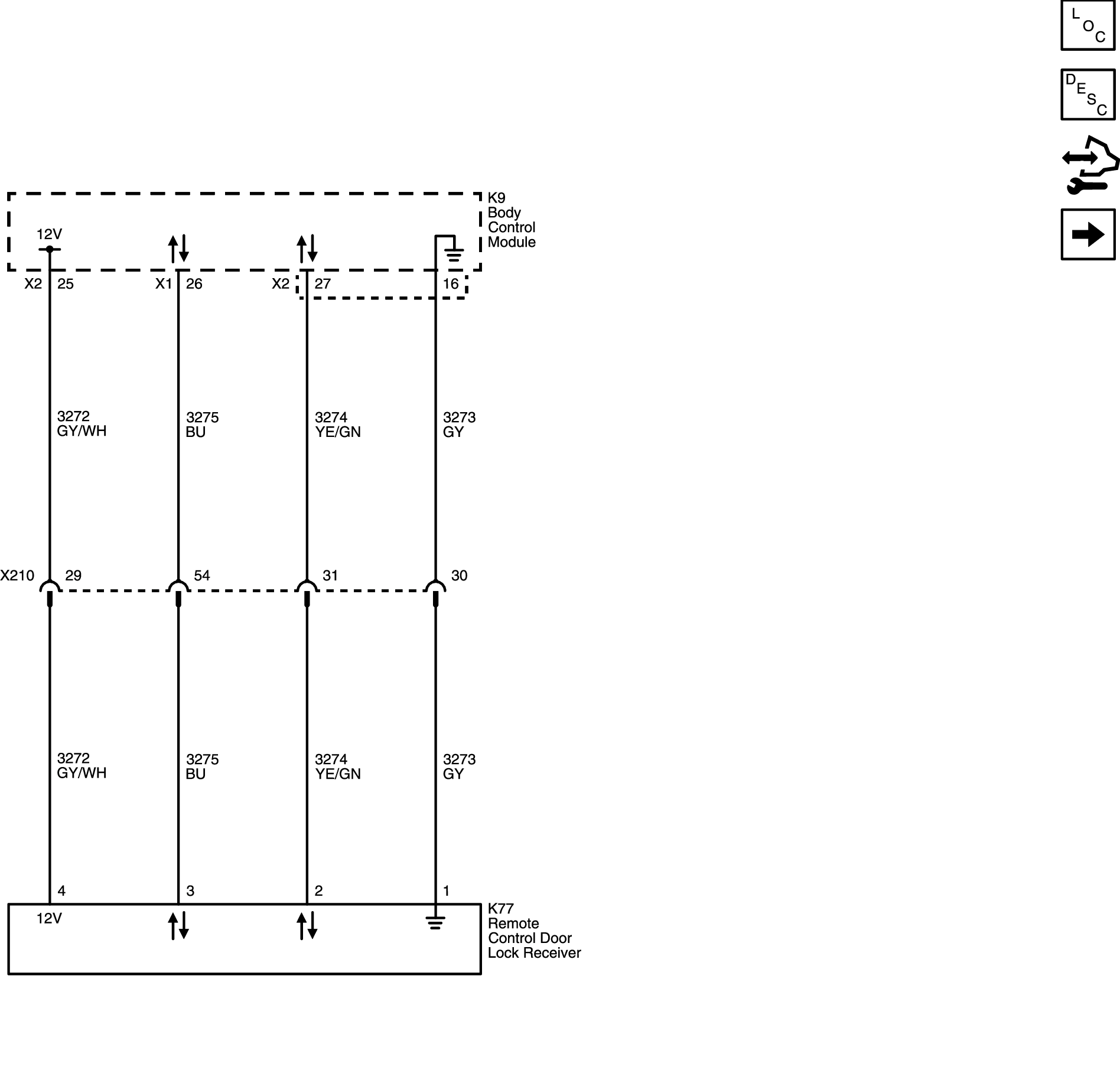

Home >> Cadillac >> 2019 >> CT6 V >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
