Digital Map Module Replacement

Courtesy of GENERAL MOTORS COMPANY

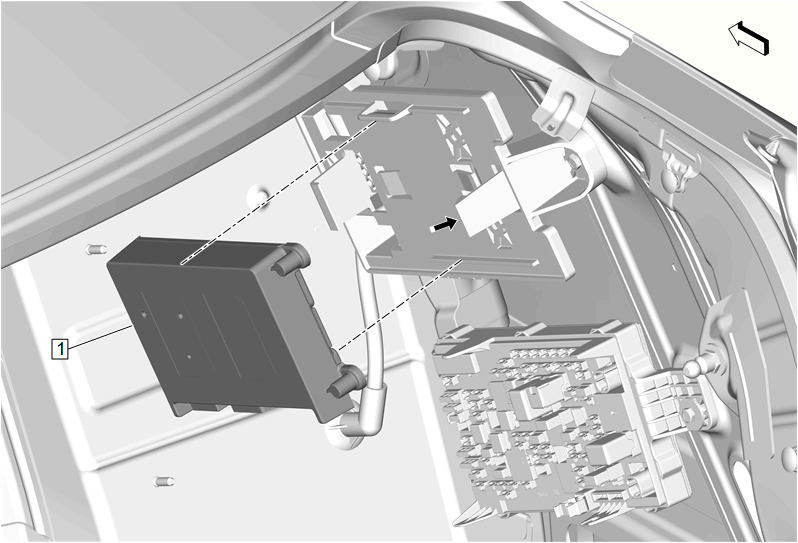

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side
1	Digital Map Module Procedure Disconnect the electrical connector. Release the retaining tab. Remove the USB port cover. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Digital Map Module

Procedure

Disconnect the electrical connector.
Release the retaining tab.
Remove the USB port cover.
Perform the necessary programming and setup procedure: Control Module References
