Theft Deterrent Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

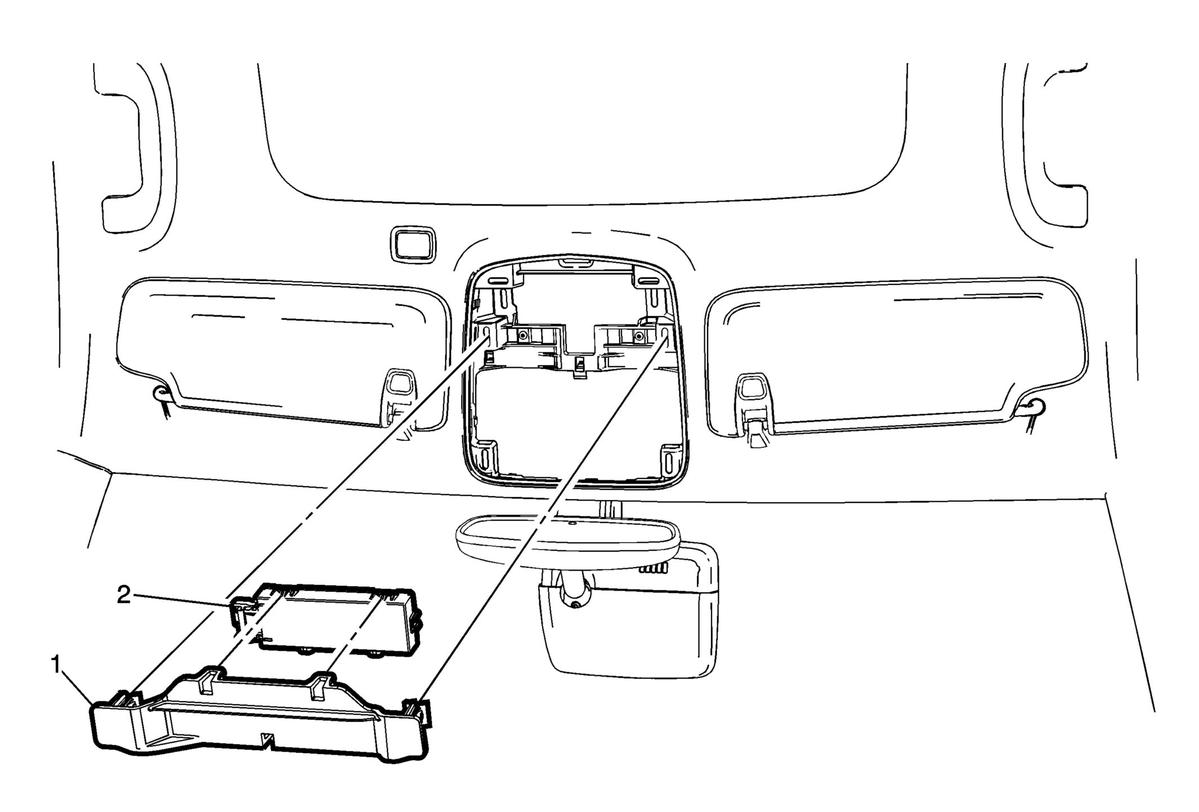

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Theft Deterrent Sensor Bracket
2	Theft Deterrent Sensor Procedure Disconnect the electrical connector. Depress tabs to remove the sensor from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Theft Deterrent Sensor Bracket

Theft Deterrent Sensor

Procedure
