Radiator Lower Insulator Replacement

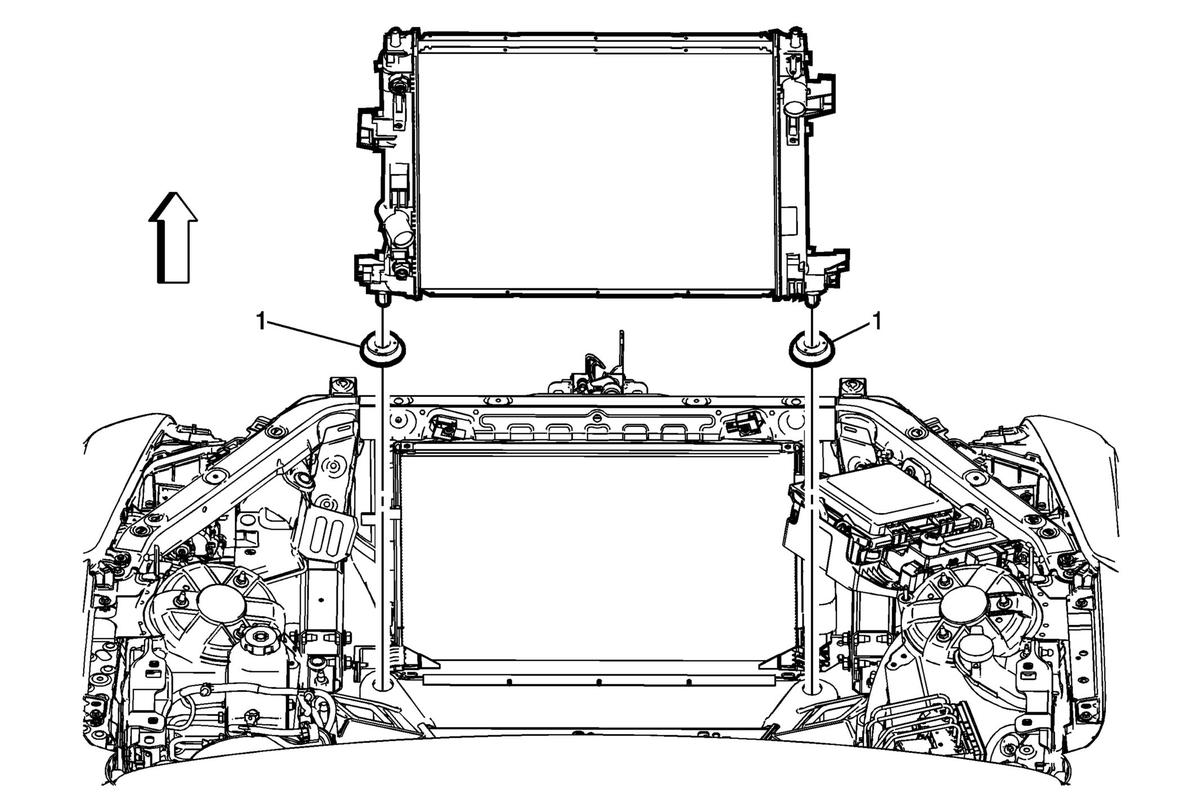

GM2842342Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the radiator. Refer to Radiator Replacement (LTG with M5N) , or Radiator Replacement (LF4) , or Radiator Replacement (LGX without V03) , or Radiator Replacement (LGX with V03) .
1 Radiator Lower Insulator (Qty: 2)
