Transmission Support Replacement (Manual)

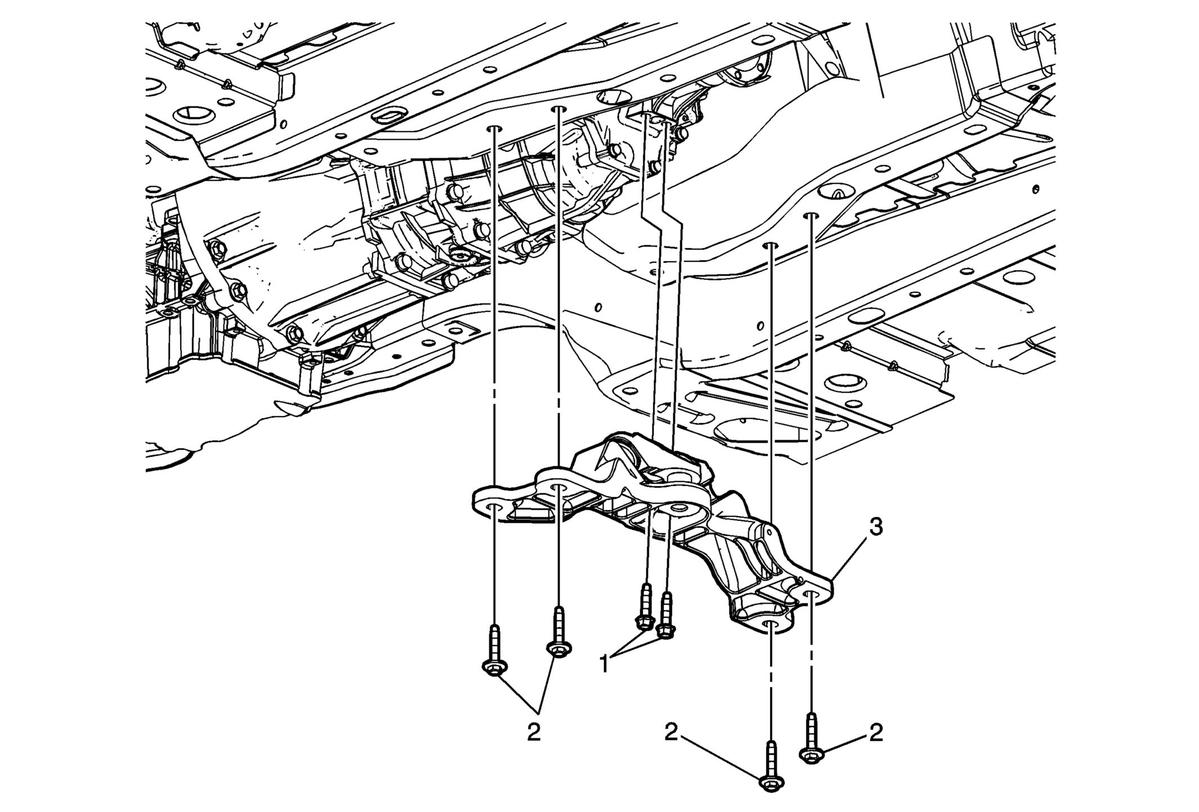

GM1981492Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (ATS) , or Lifting and Jacking the Vehicle (ATS-V) .
  2. Support the transmission.
1 Transmission Mount Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
60 N.m (44 lb ft)
2 Transmission Support Bolt (Qty: 4)
Tighten
60 N.m (44 lb ft)
3 Transmission Support
