Rear Closure Fixed Handle Applique Replacement

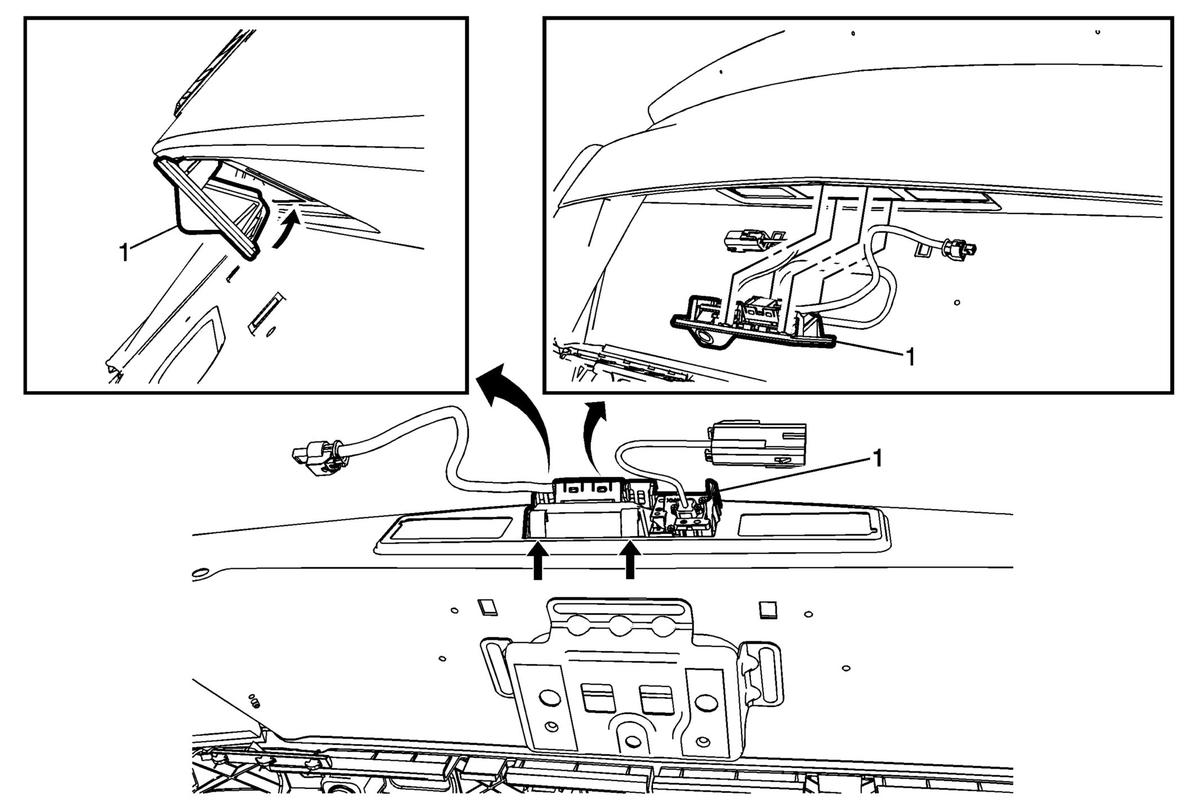

GM2814717Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Closure Fixed Handle Applique

Procedure

  1. Disconnect the electrical connectors from the applique.
  2. Press in the retainers on the back side and press the rear closure fixed handle applique out from the rear compartment.
  3. Position the outer edge of the applique to the rear compartment lid and press inner retainers into place.
