Front Side Door Outside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

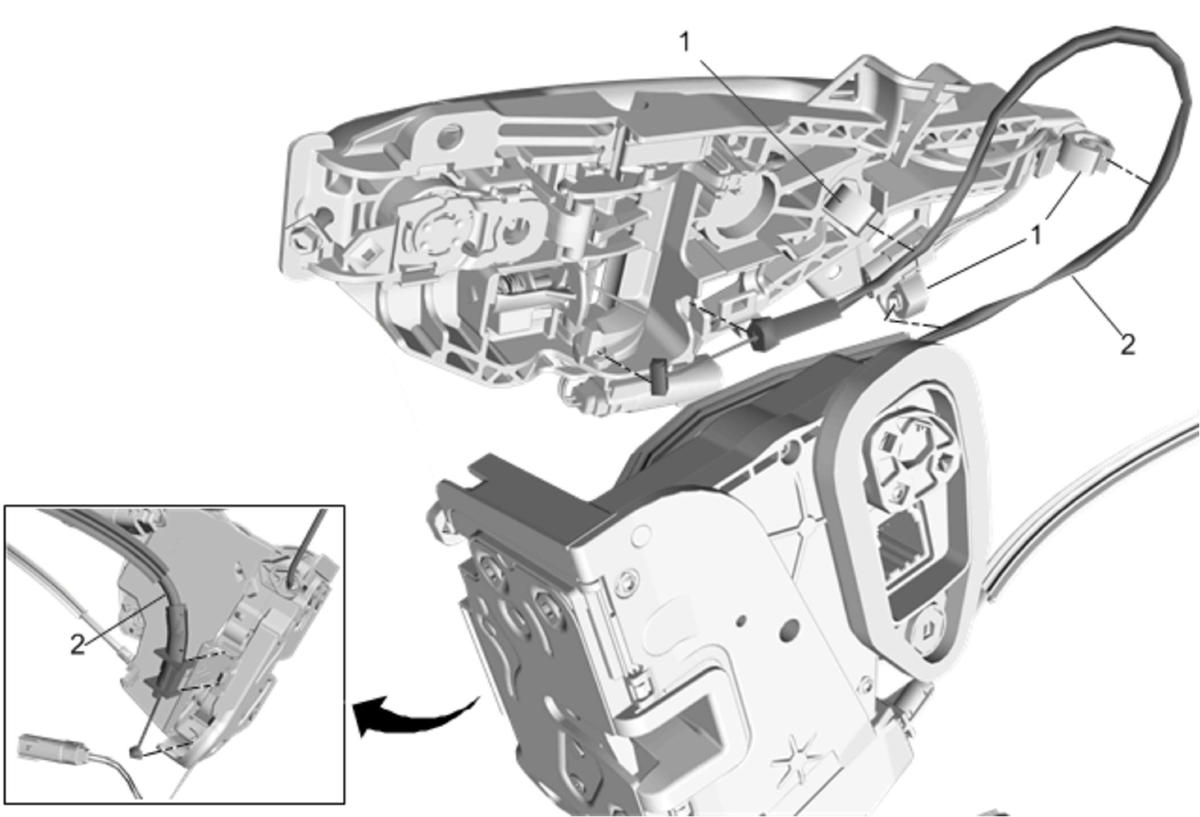

Callout	Component Name
Preliminary Procedure Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement .
1	Front Side Door Outside Handle Cable Retainer (Qty: 3) Procedure Remove the front side door outside handle cable from the retainers.
2	Front Side Door Outside Handle Cable Procedures Remove the front side door outside handle cable from the back of the latch. Remove the front side door outside handle cable from the front side door outside handle bracket. NOTE: Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the front side door latch and handle bracket assembly from the door. Refer to Front Side Door Latch Replacement .

Front Side Door Outside Handle Cable Retainer (Qty: 3)
Procedure
Remove the front side door outside handle cable from the retainers.

Front Side Door Outside Handle Cable

Procedures

Remove the front side door outside handle cable from the back of the latch.
Remove the front side door outside handle cable from the front side door outside handle bracket.

NOTE:

Ensure that the door lock system operates properly before installing the trim.
