Dual Charge Only Receptacle Replacement

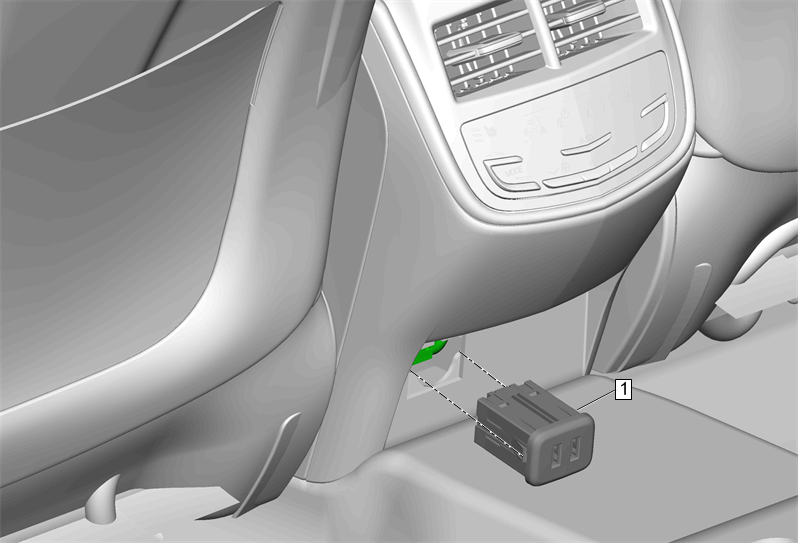

GM4800058Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Dual Charge Only Receptacle

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connector.
