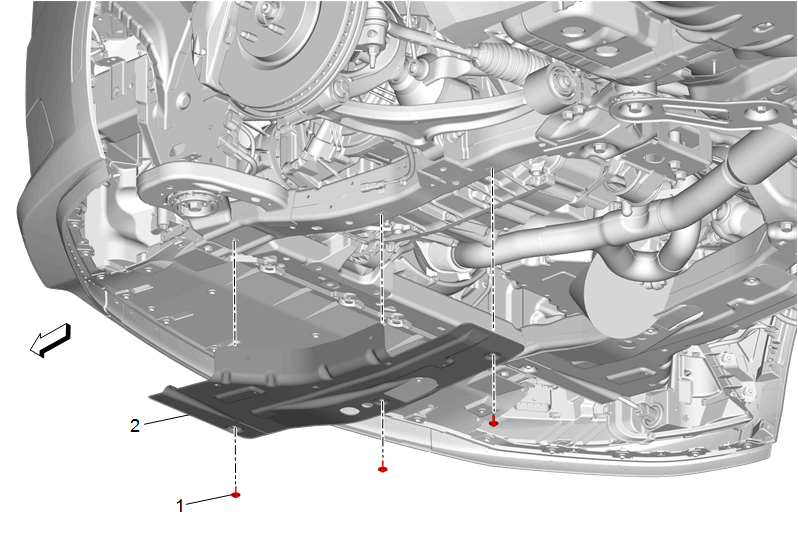

Front Compartment Air Deflector Replacement

Callout	Component Name
Preliminary Procedures Front Wheelhouse Front Liner Replacement Rocker Panel Air Deflector Replacement Drivetrain and Front Suspension Frame Transmission Protector Replacement
1	Front Compartment Air Deflector Fastener [3x] CAUTION: Refer to Fastener Caution Tighten 3 N.m (27 lb in)
2	Front Compartment Air Deflector

Callout

Component Name

Preliminary Procedures

Front Compartment Air Deflector Fastener [3x]

CAUTION:

Tighten
3 N.m (27 lb in)

Front Compartment Air Deflector
