Radio Replacement

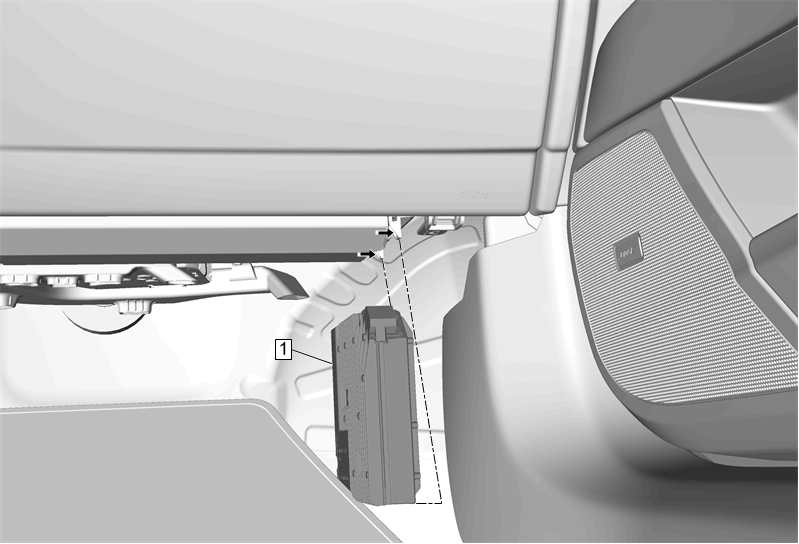

GM4820899Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Before removing the radio, perform the radio reset. Radio Reset
  2. Instrument Panel Insulator Panel Replacement - Right Side
1 Radio

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. After installing the radio, perform the radio reset. Radio Reset
