Steering Angle Sensor Replacement

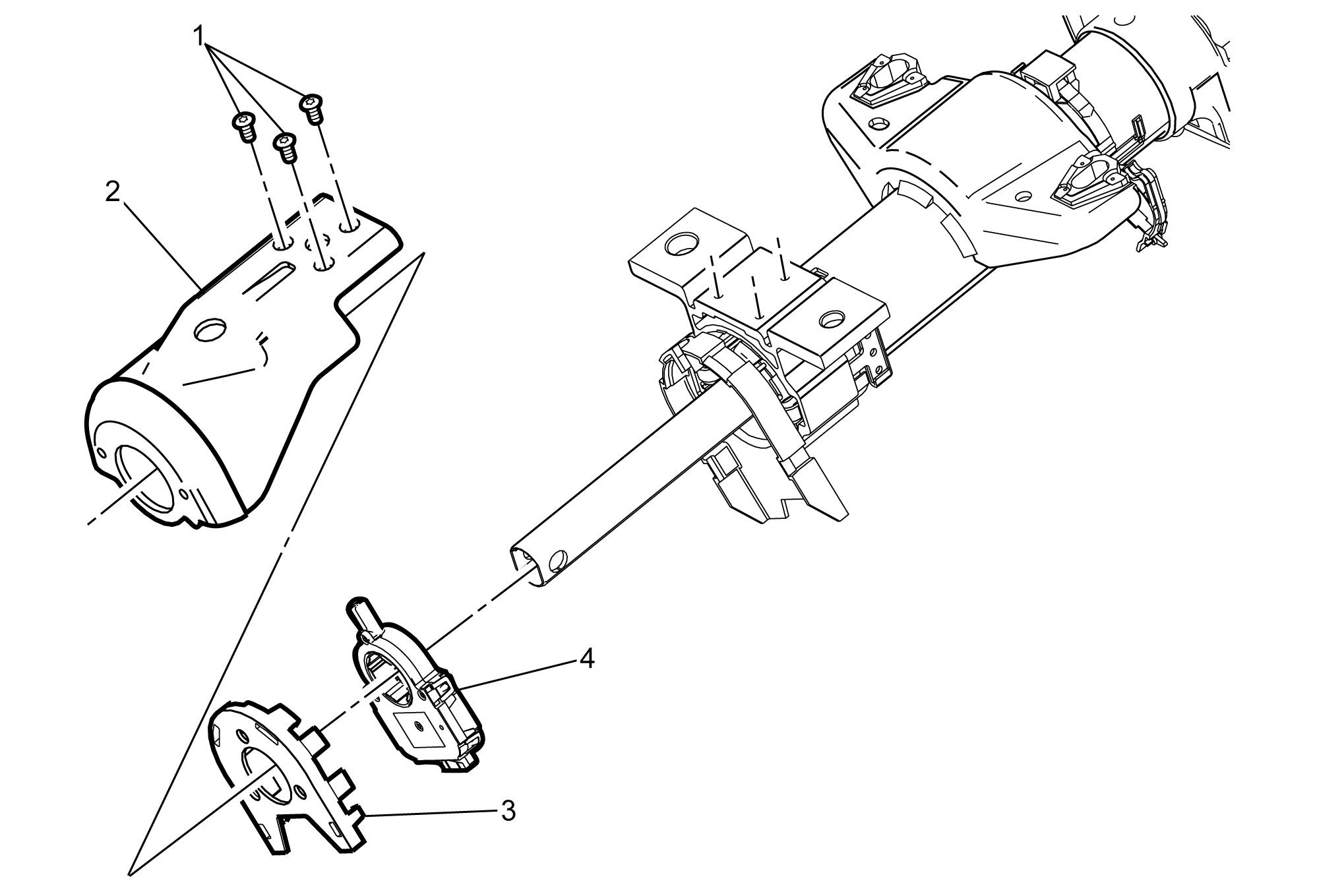

Fig 1: Steering Angle Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Steering Column. Refer to Steering Column Replacement (N33, N37)Steering Column Replacement (N38)
1	Steering Column Bracket Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Steering Column Bracket
3	Steering Angle Sensor Retaining Clip
4	Steering Angle Sensor Procedure Disconnect the electrical connector. Center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering
