Installation Procedure

Install the EBCM, if removed. Refer to Electronic Brake Control Module Replacement .
Install the BPMV to the bracket, if removed. Refer to Brake Pressure Modulator Valve Bracket Replacement .
Install the BPMV and bracket assembly to the frame rail and slide the BPMV and bracket assembly toward the front of the vehicle.
Keep the BPMV and bracket assembly firmly seated in the slots of the frame rail and tighten the BPMV bracket bolts (1) to 22 N.m (16 lb ft).

Fig 1: BPMV Bracket Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Connect the right front brake pipe fitting (1) and tighten the fitting to 18 N.m (13 lb ft).

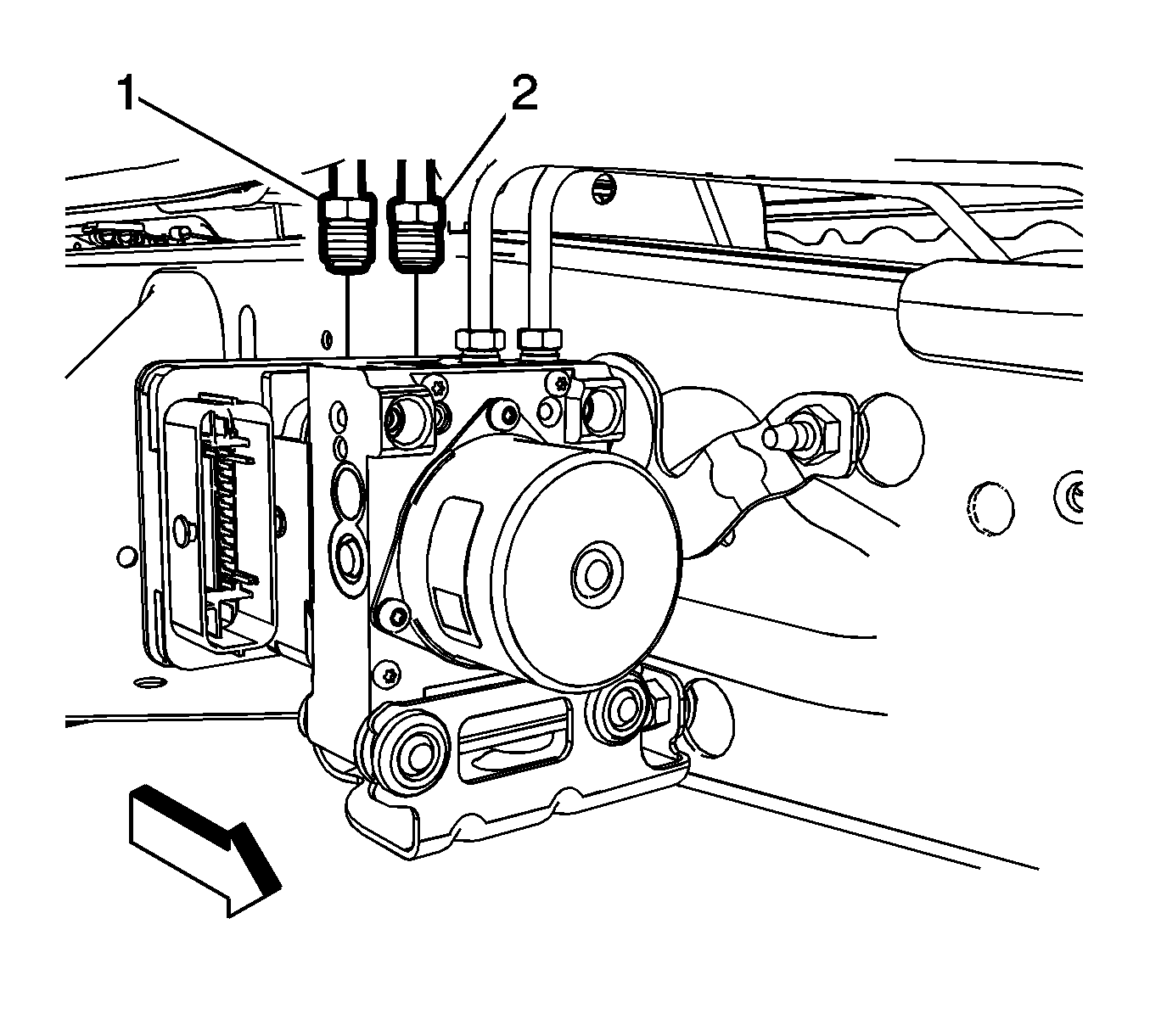

Fig 2: Right Front And Left Front Brake Pipe Fittings
Courtesy of GENERAL MOTORS COMPANY
Connect the left front brake pipe fitting (2) and tighten the fitting to 18 N.m (13 lb ft).
Connect the left rear brake pipe fitting (1) and tighten the fitting to 18 N.m (13 lb ft).

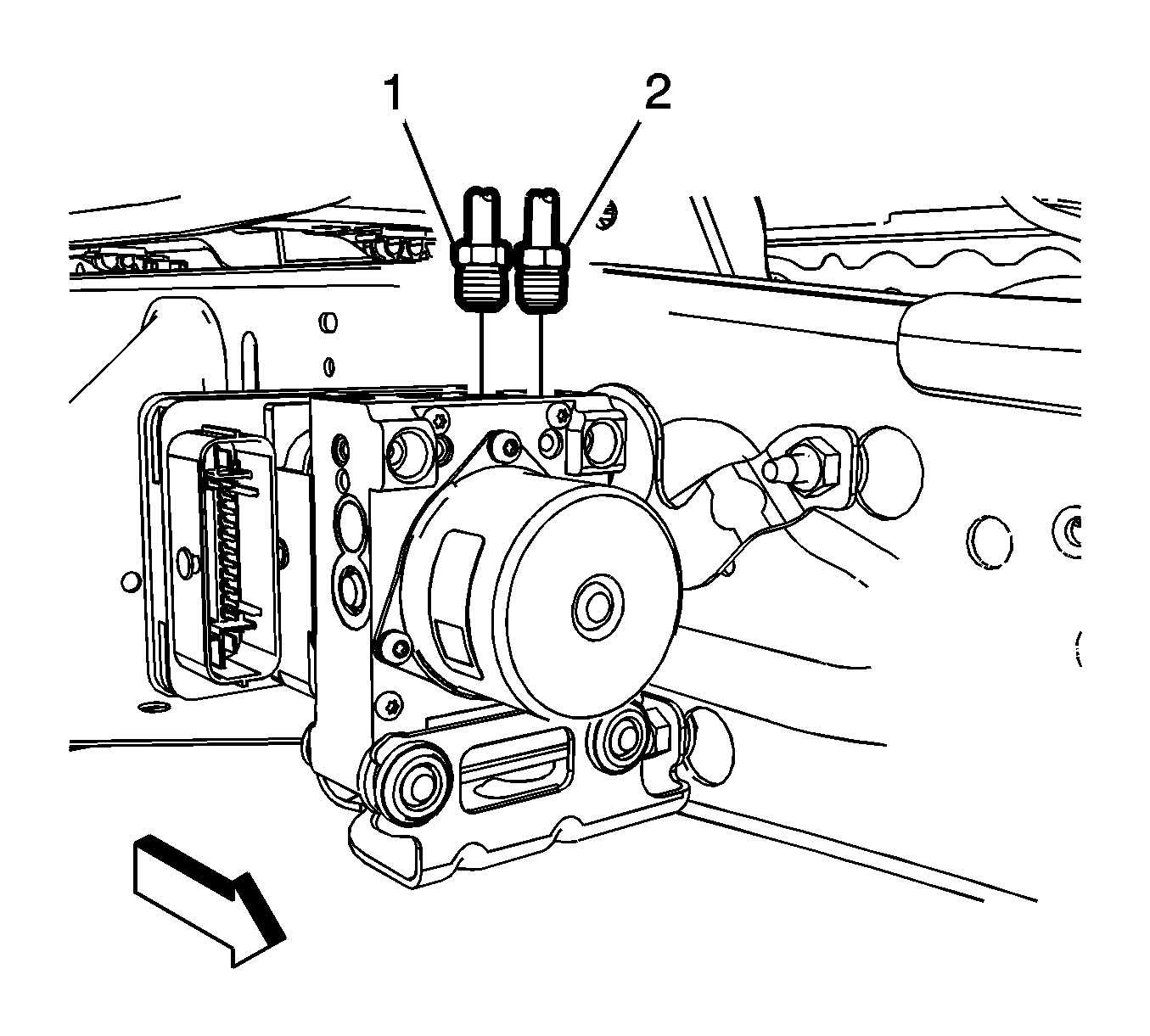

Fig 3: Left Rear And Right Rear Brake Pipe Fittings
Courtesy of GENERAL MOTORS COMPANY
Connect the right rear brake pipe fitting (2) and tighten the fitting to 18 N.m (13 lb ft).
Connect the master cylinder secondary brake pipe fitting (1) and tighten the fitting to 32 N.m (24 lb ft).

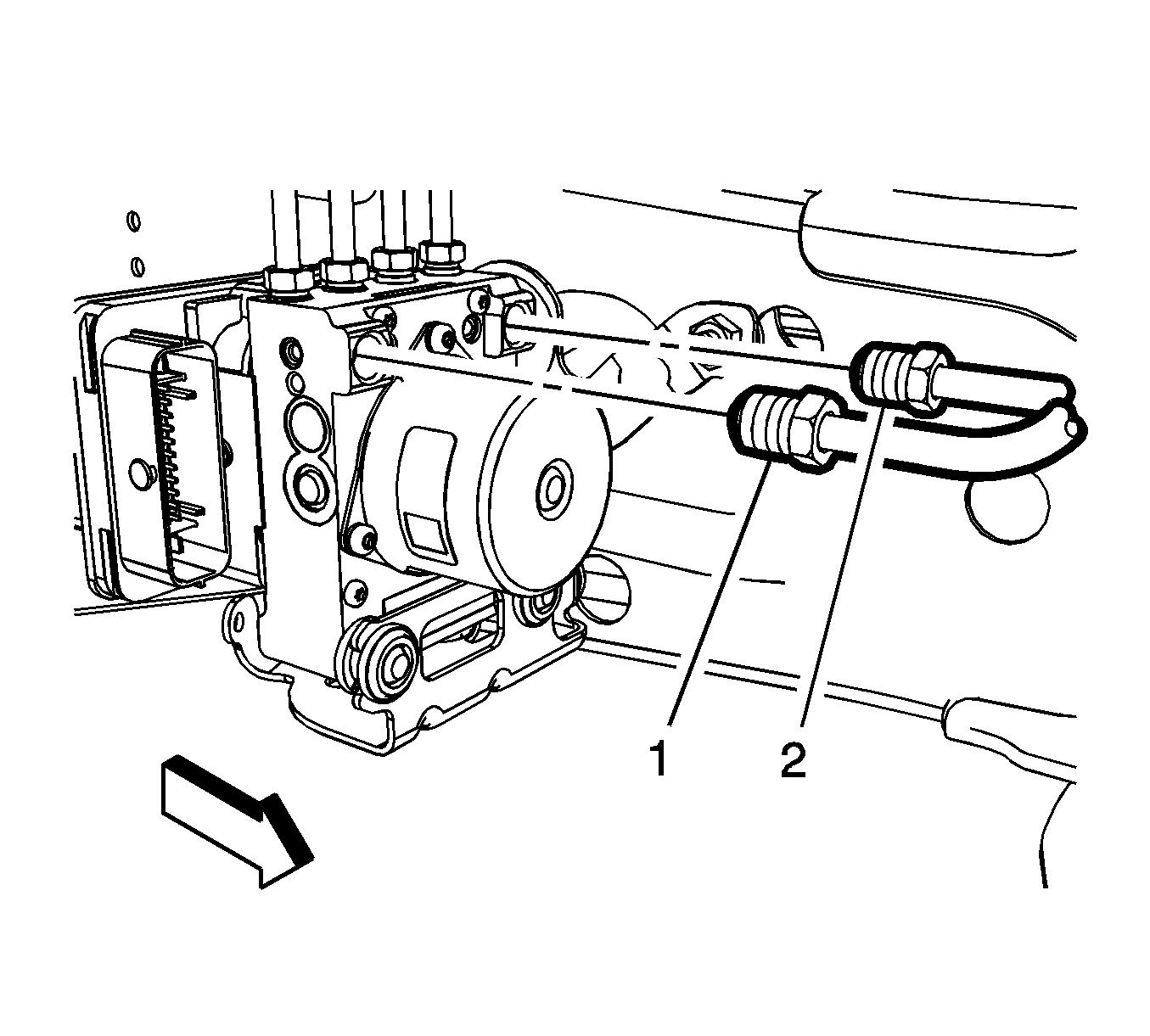

Fig 4: Master Cylinder Secondary Inlet Brake Pipe Fitting And Master Cylinder Primary Inlet Brake Pipe Fitting
Courtesy of GENERAL MOTORS COMPANY
Connect the master cylinder primary brake pipe fitting (2) and tighten the fitting to 32 N.m (24 lb ft).
Connect the EBCM electrical connector.
Bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed .
Program the EBCM. Refer to Control Module References .
Calibrate the BPMV pressure sensor. Refer to Brake Pressure Modulator Valve Pressure Sensor Calibration .
