Installation Procedure

  1. Position the intermediate steering shaft (2) on the vehicle.

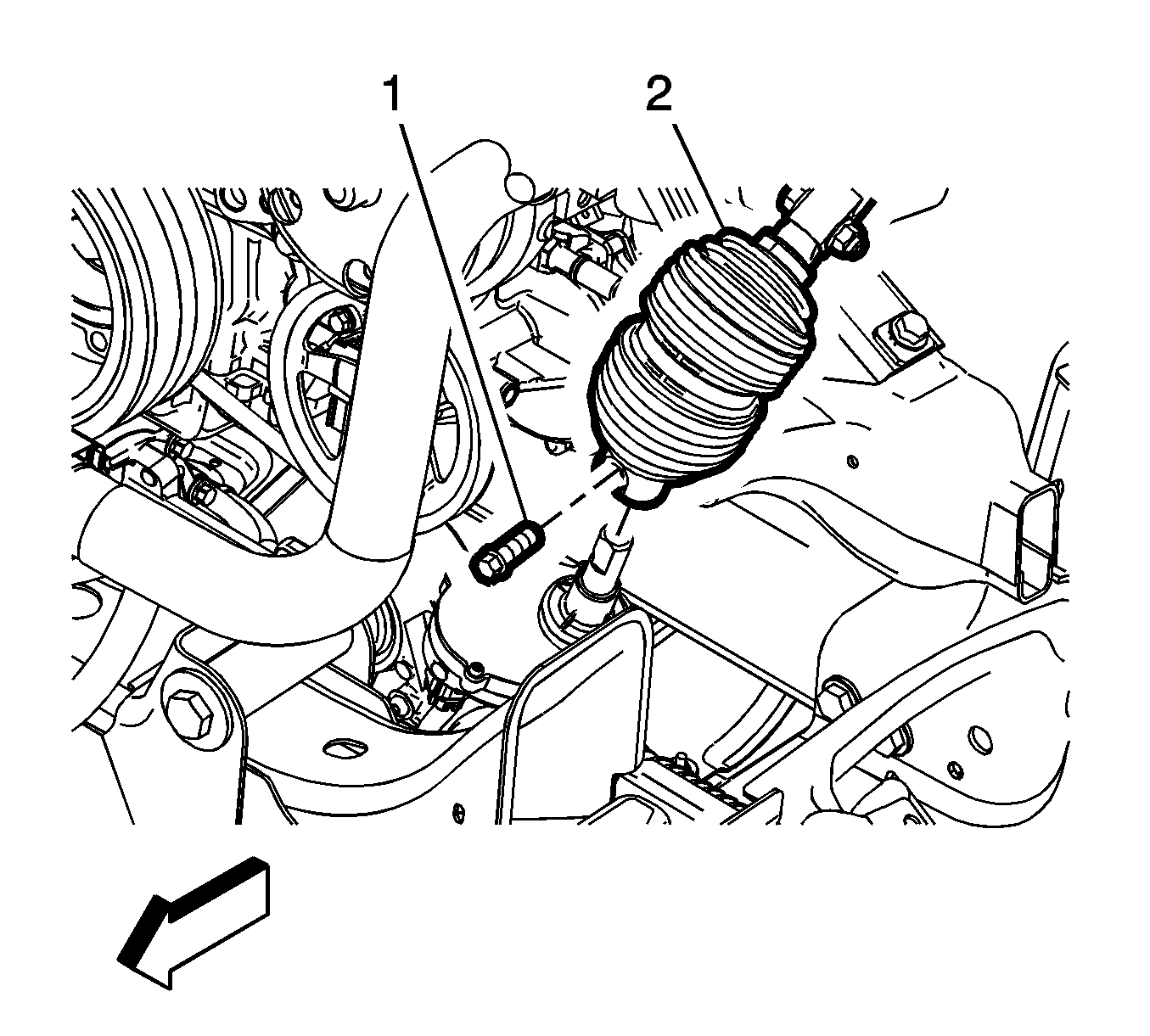

    Fig 1: Intermediate Steering Shaft Lower Bolt
    GM3273227Courtesy of GENERAL MOTORS COMPANY
  2. Install Intermediate Steering Shaft (2) @ Steering Gear.
  3. Install Intermediate Steering Shaft Lower Bolt (1) and tighten 45 N.m (33 lb ft)
    CAUTION: Refer to Fastener Caution .
  4. Install Upper Intermediate Steering Shaft (3) @ Intermediate Steering Shaft.

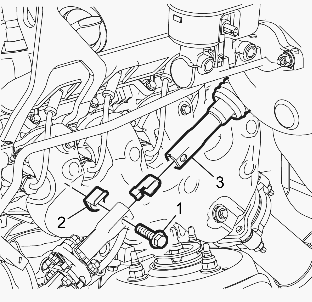

    Fig 2: Steering Shaft Upper Bolt
    GM3637270Courtesy of GENERAL MOTORS COMPANY
  5. Install Intermediate Steering Shaft Upper Nut (2)
  6. Install Intermediate Steering Shaft Upper Bolt (1) and tighten 50 N.m (37 lb ft)
