Air Cleaner Assembly Replacement

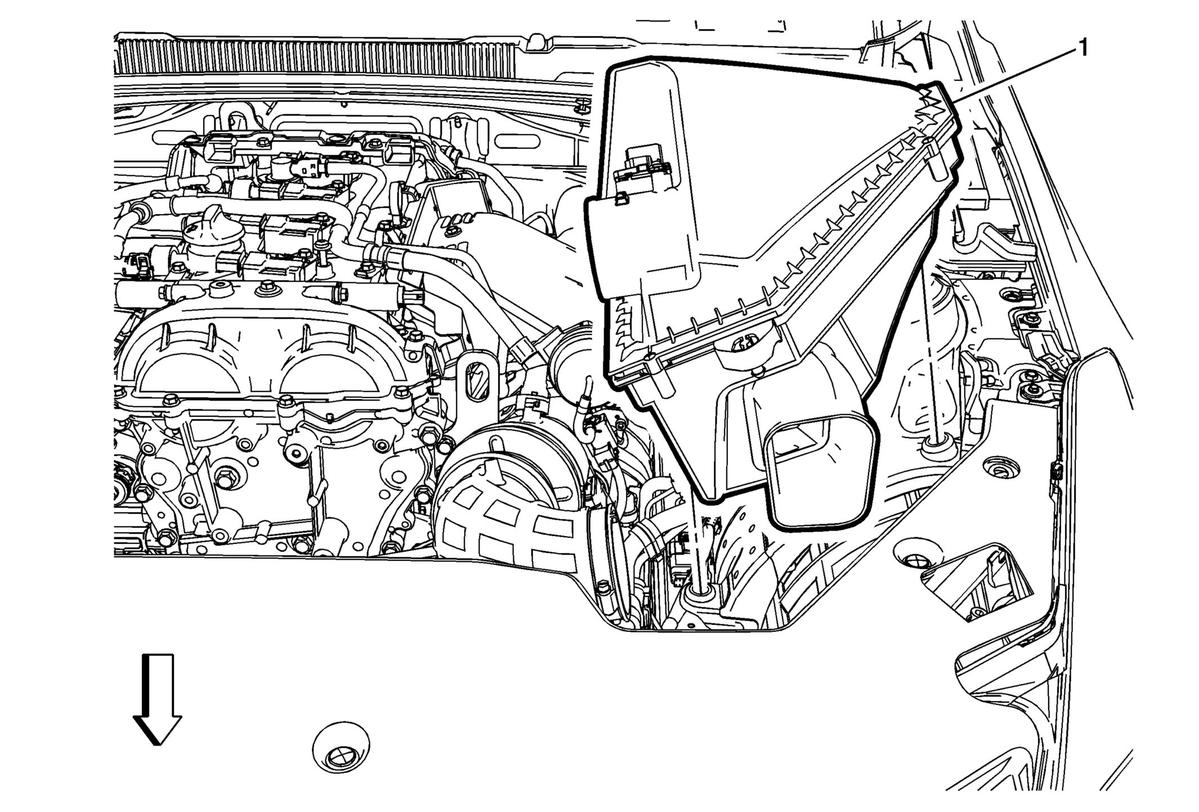

GM2834572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Non-Tamperproof) Air Cleaner Outlet Duct Replacement (Tamperproof) .
  2. Disconnect the mass airflow sensor electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
