Inside Rearview Mirror Replacement

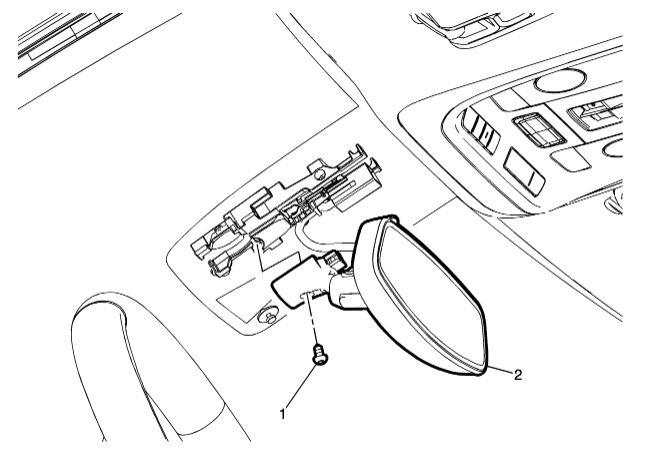

GM3421648

Callout

Component Name

Preliminary Procedure
Remove the windshield multifunction sensor mount bracket cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU, UFL)Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU, UFL)

1

Inside Rearview Mirror Screw

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
Adjust the mirror to the full upward position.
Loosen the set screw located at the base of the mirror.

Tighten
1.8 N.m (16 lb in)

2

Inside Rearview Mirror
Procedure
Slide the mirror off the rearview mirror bracket.
