Low Frequency Rear Compartment Antenna Replacement

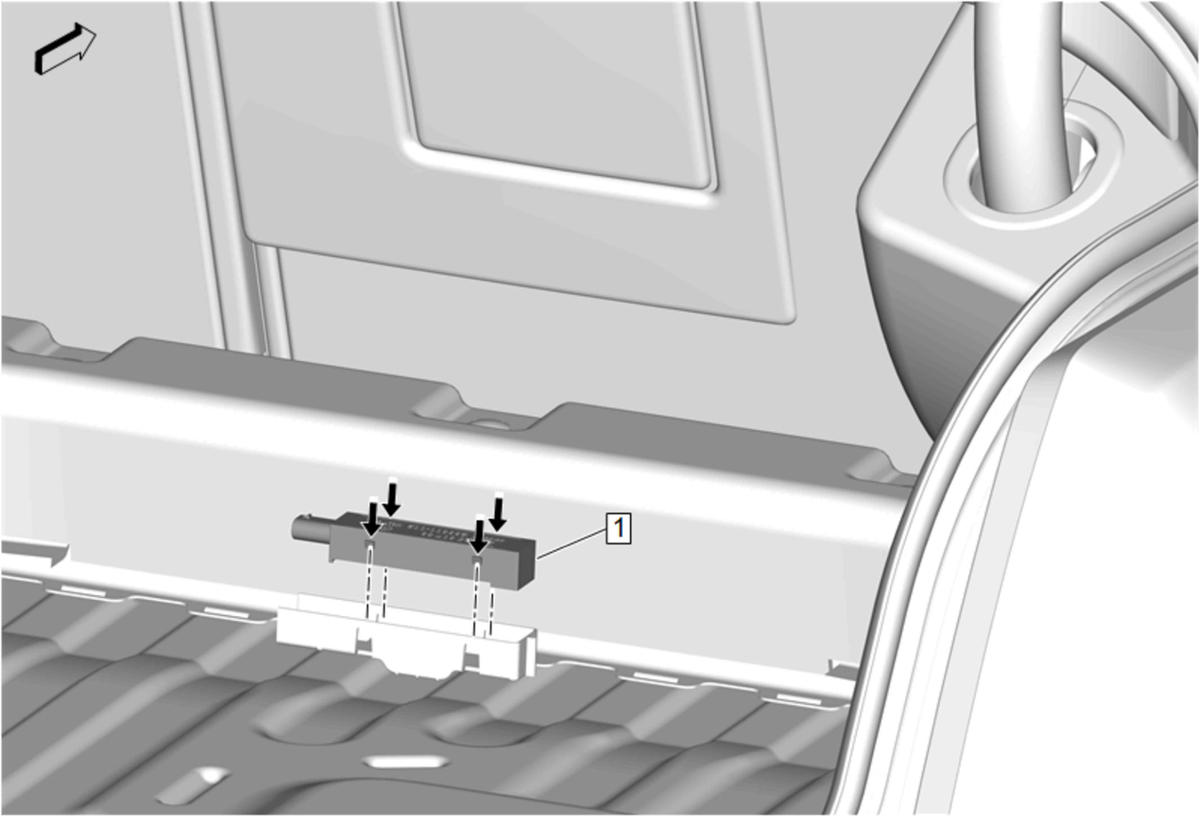

GM5022012Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Panel Carpet Replacement
1 Low Frequency Rear Compartment Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
