Mode Valve Lever Replacement

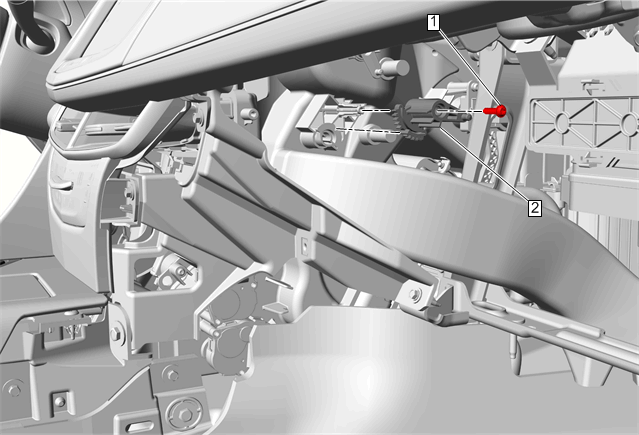

GM4257847Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Mode Control Cam Cover Replacement
1 Mode Valve Lever Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Mode Valve Lever
Procedure
Mode Control Cam Alignment
