Heater and Air Conditioning User Interface Control Replacement

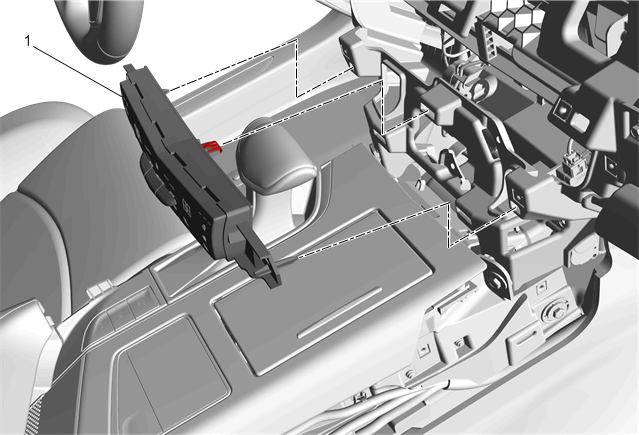

GM4256346Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Plate Replacement
1 Heater and Air Conditioning User Interface Control

Procedure

  1. Disconnect the electrical connector.
  2. Clear the DTCs from the heater and air conditioning remote control module.
