Installation Procedure

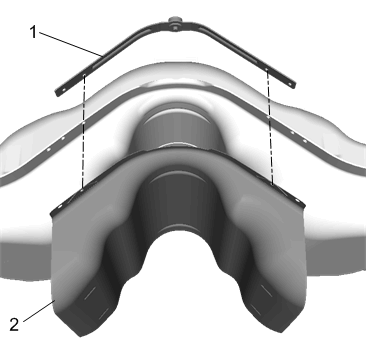

  1. GM4489053Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  2. Fuel Tank Strap (1) - Install

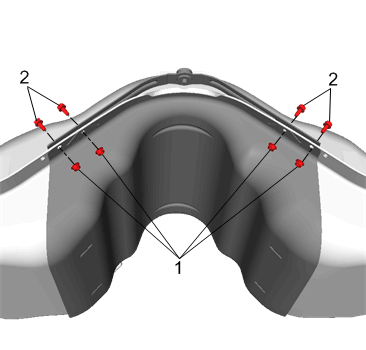

  3. GM4489047Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield Bolt (2) - Install [4x]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Shield Nut (1) - Install and tighten [4x] 9 N.m (80 lb in)

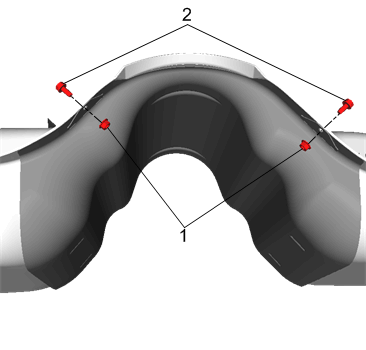

  5. GM4489043Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield Bolt (2) - Install [2x]

  6. Fuel Tank Shield Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
  7. Fuel Tank - Install Fuel Tank Replacement (HP9)
