Installation Procedure

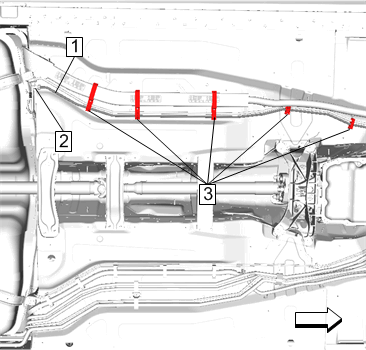

  1. GM4487491Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Hose (1) @Retainer (3) - Install [5x]

  2. Fuel Feed Hose (1) @ Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  3. GM4251757Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Hose (1) @Retainer (2) - Install

  4. Front Body Exhaust Heat Shield - Right Side - Install - Front Body Exhaust Heat Shield Replacement (Right Side, LTG)Front Body Exhaust Heat Shield Replacement (Left Side, LTG)
  5. Fuel Injection Fuel Feed Pipe Dampener - Install - Fuel Injection Fuel Feed Pipe Dampener Replacement
