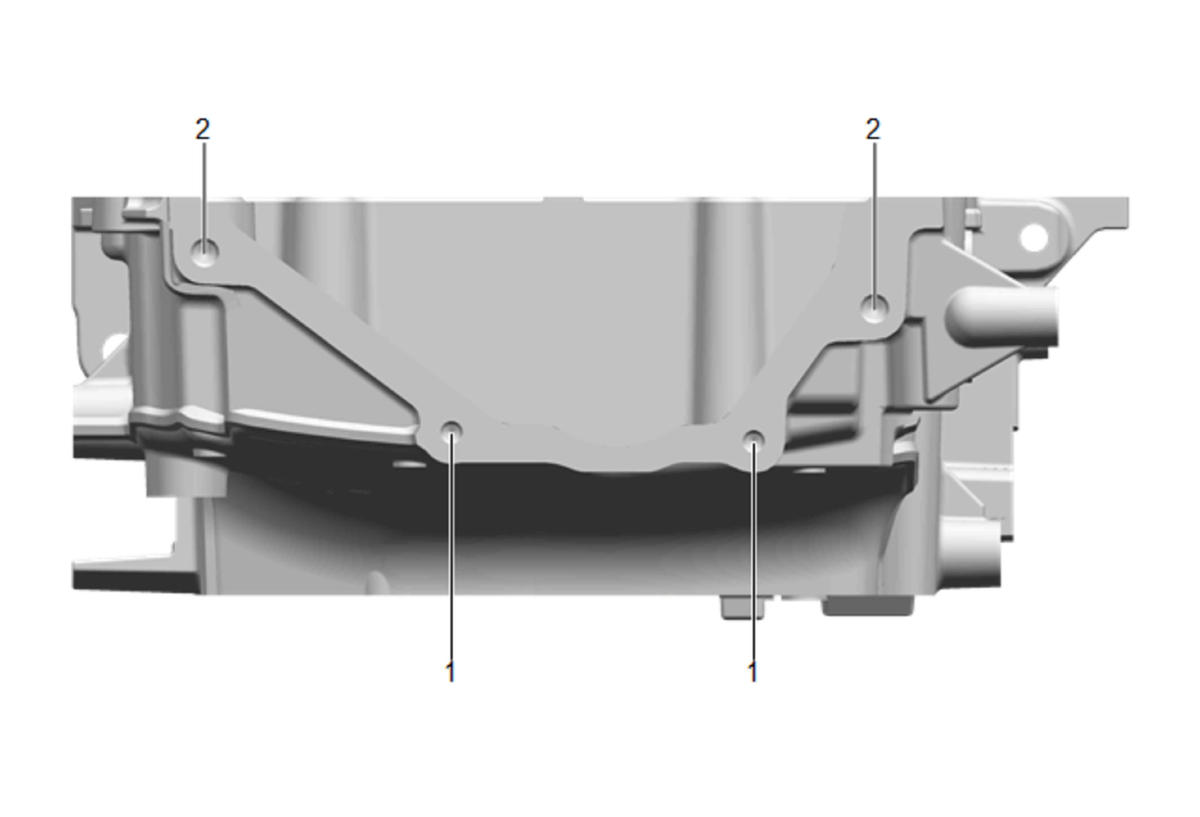

Upper Oil Pan - Front View
 Courtesy of GENERAL MOTORS COMPANY
|
Upper Oil Pan - Front View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M10 x 1.5 |
216 |
211 |
212 |
213 |
214 |
34.0 |
1.35 |
34.0 |
1.35 |
| 2 |
M8 x 1.25 |
181213 |
206 |
207 |
208 |
209 |
29.0 |
1.14 |
29.0 |
1.14 |
