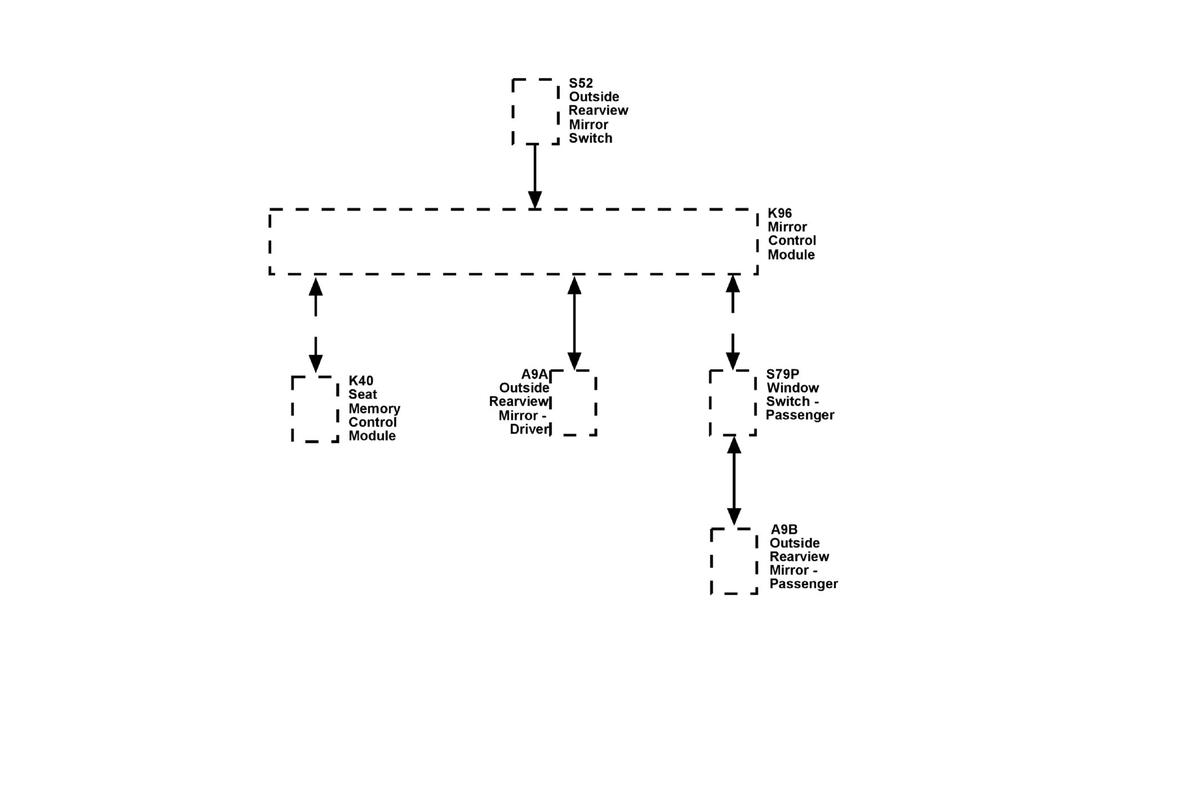

Power Mirror System Components
The power mirror system consists of the following components:
- Mirror Control Module
- Memory Seat Control Module
- Outside Mirror Switch
- Passenger Window Switch
- Left Outside Rearview Mirror
- Right Outside Rearview Mirror
| Callout | Component Name |
|---|---|
| S52 | S52 Outside Rearview Mirror Switch |
| K96 | K96 Mirror Control Module |
| A9A | A9A Outside Rearview Mirror - Driver |
| S79P | S79P Window Switch - Passenger |
| A9B | A9B Outside Rearview Mirror - Passenger |
| K40 | K40 Seat Memory Control Module |
