Steering Column Lower Trim Cover Replacement

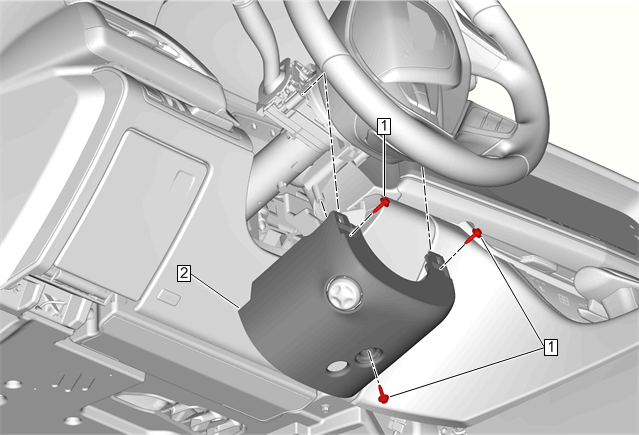

GM4245047Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Extend the steering column to the fully telescoped position.
  2. With the vehicle off, place the ignition system in the ACC/ACCESSORY mode.
  3. Disengage the steering column upper trim cover from the steering column lower trim cover. Steering Column Upper Trim Cover Replacement (Without Driver Monitoring System Camera) Steering Column Upper Trim Cover Replacement (With Driver Monitoring System Camera)
1 Steering Column Lower Trim Cover Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Procedure
Rotate the steering wheel left and right to access the fasteners securing the steering column lower trim cover to the turn signal switch bracket.
Tighten
2.5 N.m (22 lb in)
2 Steering Column Lower Trim Cover

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
