Rear Compartment Lid Release Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement

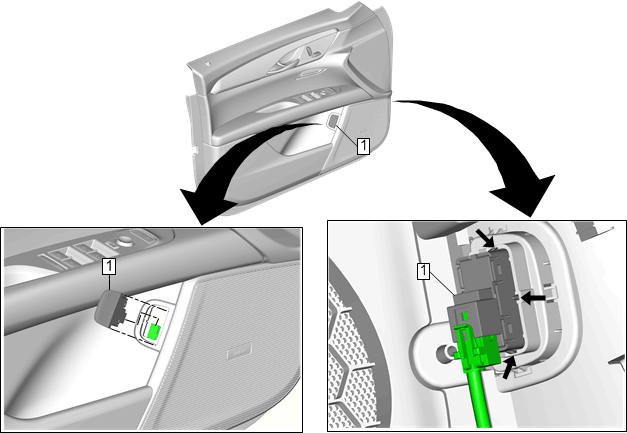

1	Rear Compartment Lid Release Switch Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the tabs to release the switch from the front side door trim. Disconnect the electrical connector.

Callout

Component Name

Rear Compartment Lid Release Switch

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the tabs to release the switch from the front side door trim.
Disconnect the electrical connector.
