Rear Compartment Lid Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

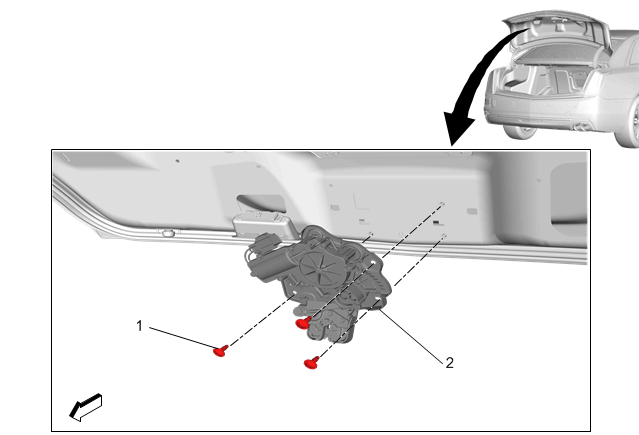

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement
1	Rear Compartment Lid Latch Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Latch Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Rear Compartment Lid Latch Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Latch

Procedure
