Door Lock Switch Replacement - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement (Drivers Side)

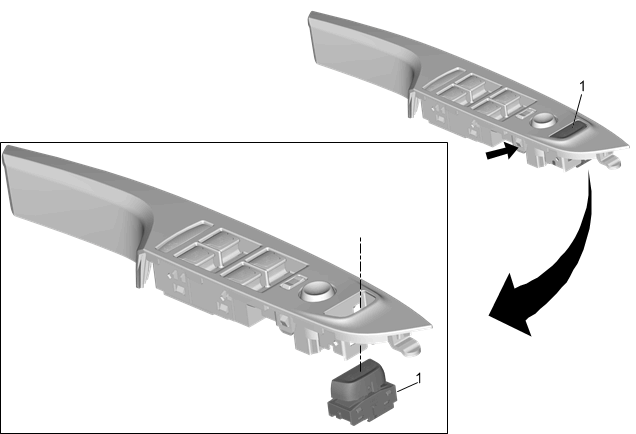

1	Door Lock Switch Procedure Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch. Control Module References for programming and setup information, if required.

Callout

Component Name

Door Lock Switch

Procedure

Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
Control Module References for programming and setup information, if required.
