Front Side Turn Signal Lamp Replacement

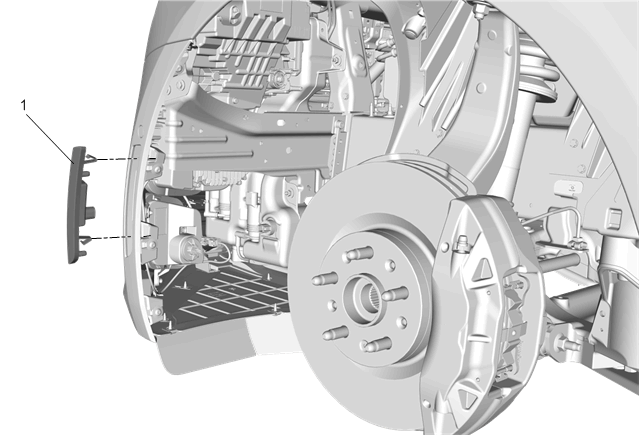

GM4249715
Callout Component Name
Preliminary Procedure
Front Wheelhouse Liner Replacement
1 Front Side Turn Signal Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Compress the upper and lower clips and pull from the front bumper fascia.
