Digital Map Module Replacement

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (Without HP9)Rear Compartment Side Trim Replacement - Right Side (With HP9)

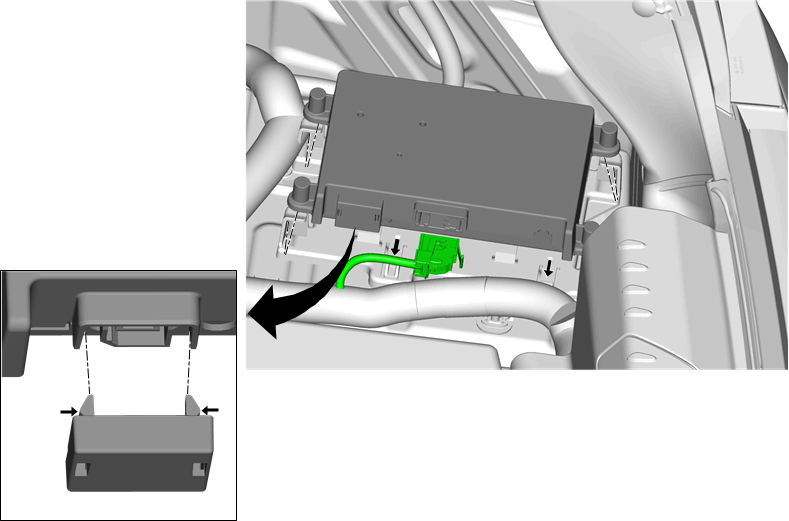

1	Digital Map Module Procedure Disconnect the electrical connector. Release the retaining tabs. Remove the USB port cover. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Digital Map Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Remove the USB port cover.
Perform the necessary programming and setup procedure: Control Module References
