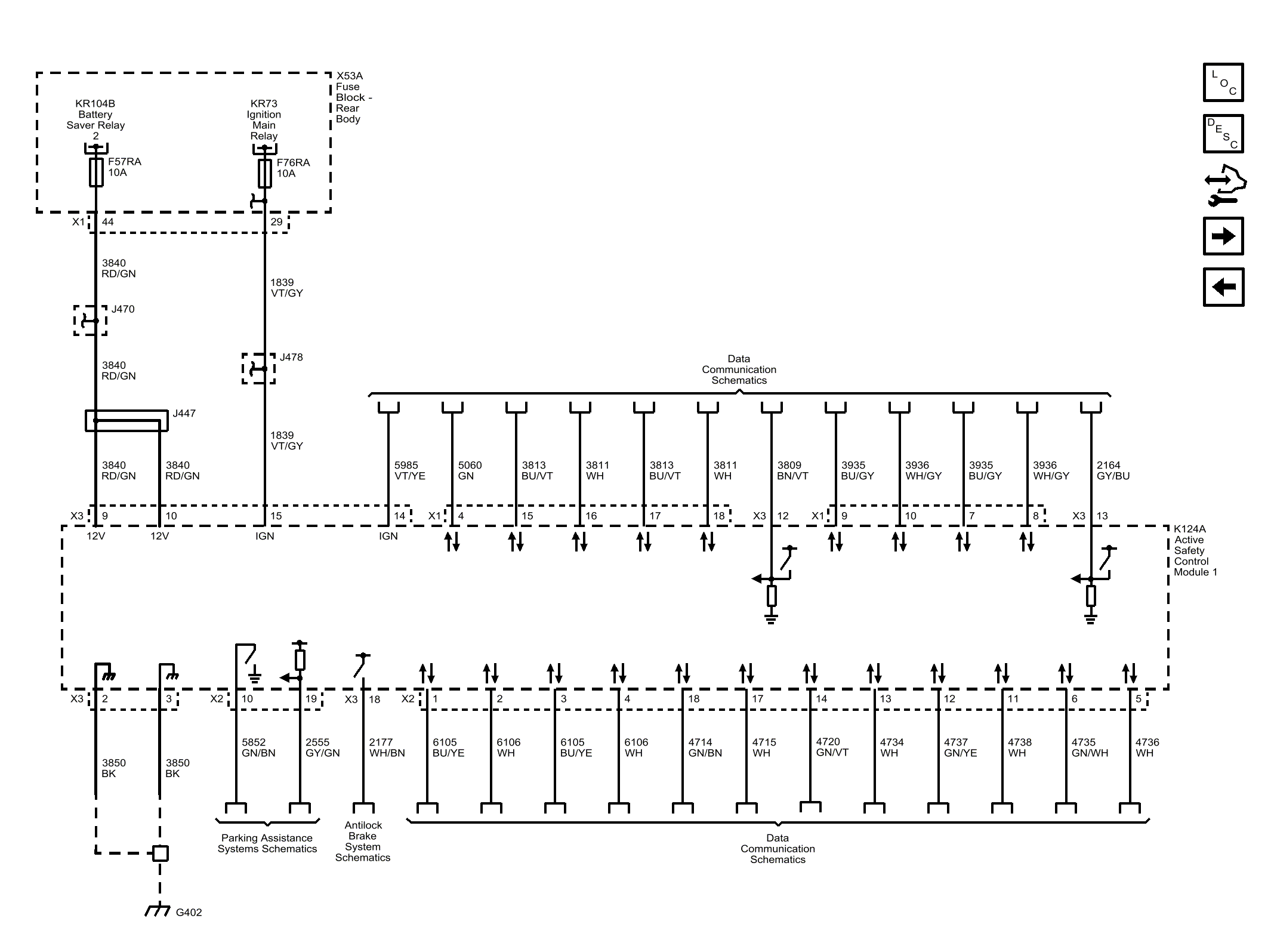

Collision Mitigation - Active Safety Control Module 1 Power, Ground, Serial Data, and Subsystem References
Collision Mitigation - Active Safety Control Module 1 Power, Ground, Serial Data, and Subsystem References
