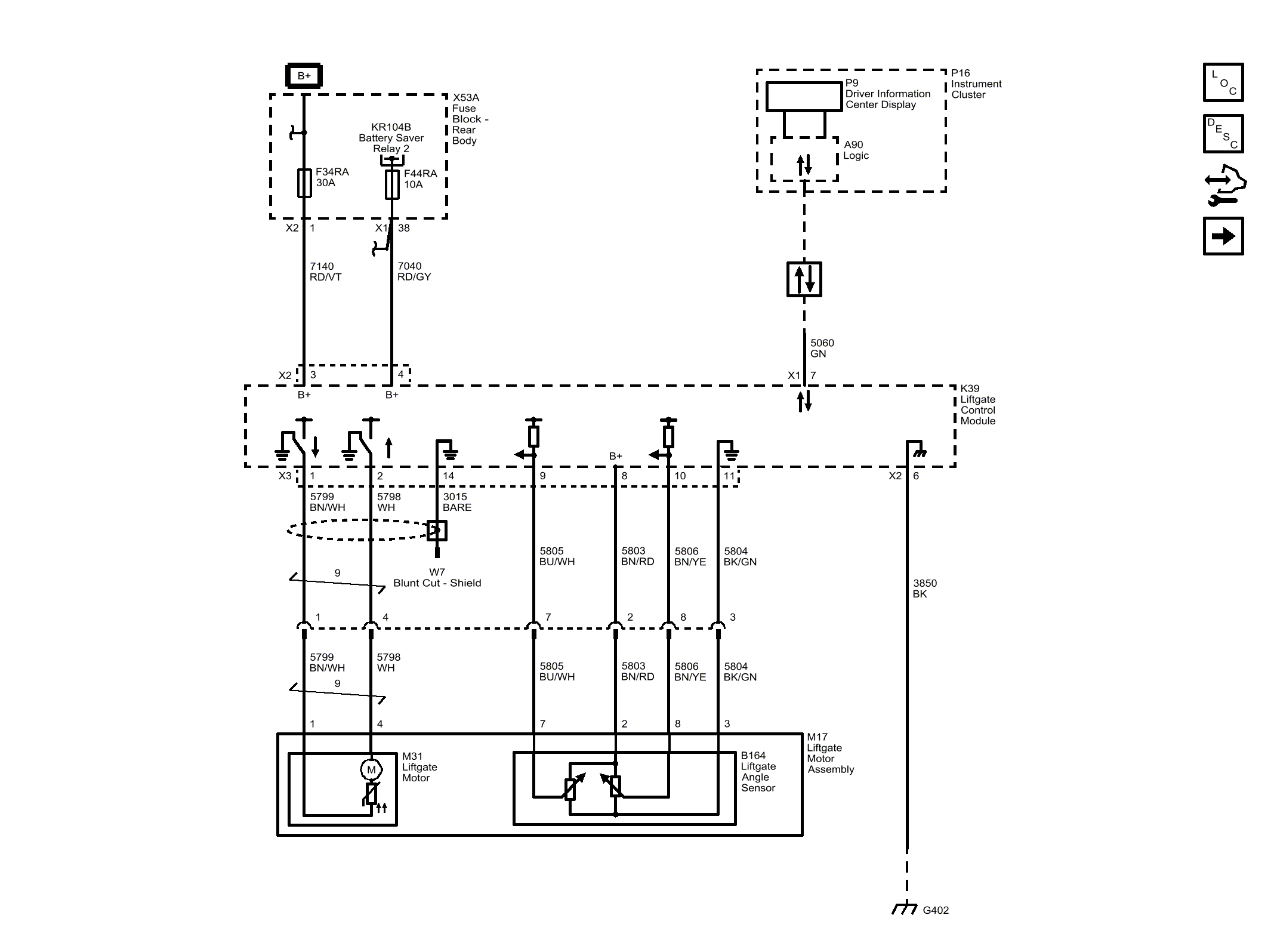

Module Power, Ground, Serial Data, and Liftgate Motor

GM4598053

Courtesy of GENERAL MOTORS COMPANY
