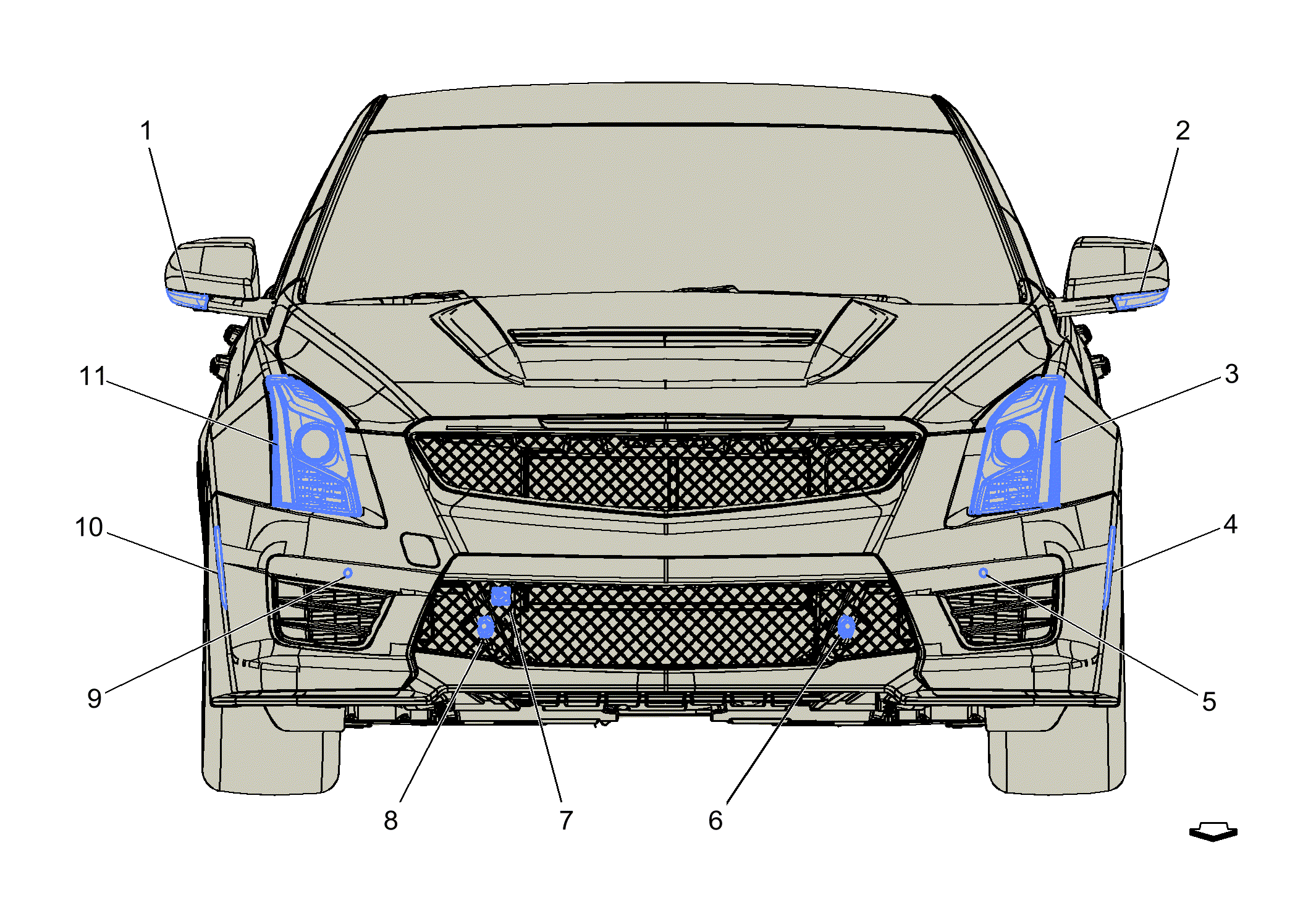

Front of Vehicle Components (1SV)
Front of Vehicle Components (1SV)
| Items |
|---|
| 1. E4Z Turn Signal Repeater Lamp - Right (Coupe/DR2/DR4) E4Z Turn Signal Repeater Lamp - Right |
| 2. E4Y Turn Signal Repeater Lamp - Left (Coupe/DR2/DR4) E4Y Turn Signal Repeater Lamp - Left |
| 3. E13LA Headlamp Assembly - Left |
| 4. E2LF Side Marker Lamp - Left Front (TUJ) E2LF Side Marker Lamp - Left Front (1SV+TUJ)E2LF Side Marker Lamp - Left Front (TUJ-1SV) |
| 5. B306A Parking Assist Sensor - Front Left Outer (UD5) B306A Parking Assist Sensor - Front Left Outer (UD5) |
| 6. B306B Parking Assist Sensor - Front Left Middle (UD5) B306B Parking Assist Sensor - Front Left Middle (UD5) |
| 7. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (-1SV)B9 Ambient Air Temperature Sensor (1SV) |
| 8. B306C Parking Assist Sensor - Front Right Middle (UD5) B306C Parking Assist Sensor - Front Right Middle (UD5) |
| 9. B306D Parking Assist Sensor - Front Right Outer (UD5) B306D Parking Assist Sensor - Front Right Outer (UD5) |
| 10. E2RF Side Marker Lamp - Right Front (TUJ) E2RF Side Marker Lamp - Right Front (1SV+TUJ)E2RF Side Marker Lamp - Right Front (TUJ-1SV) |
| 11. E13RA Headlamp Assembly - Right |
