AAM Second Design Label Location

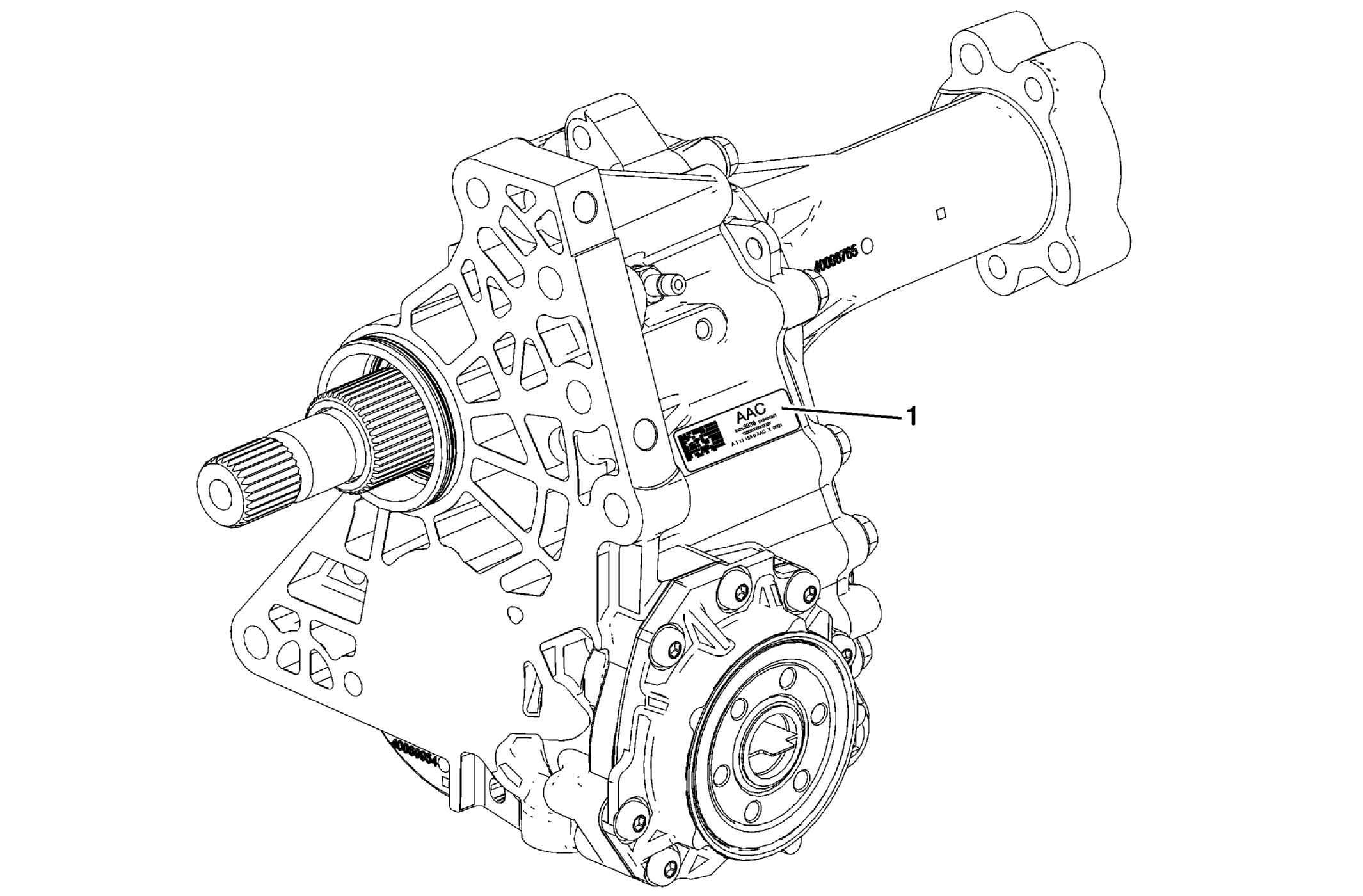

Fig 1: AAM Second Design Label Location

GM2909771

Courtesy of GENERAL MOTORS COMPANY

The transfer case identification label (1) is located on the side of the front case half.
