AAM First Design Label Location

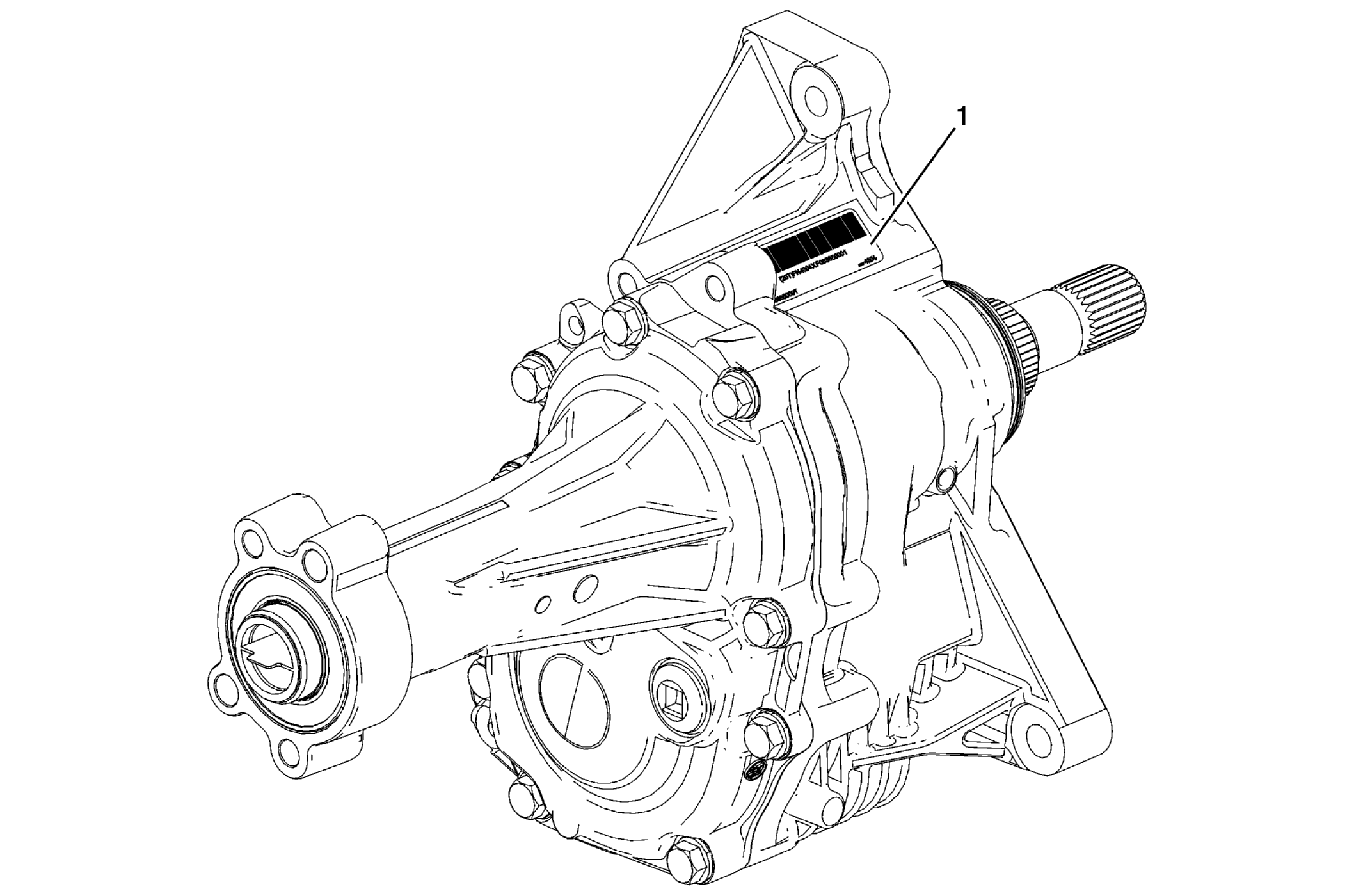

Fig 1: AAM First Design Label Location

GM2909768

Courtesy of GENERAL MOTORS COMPANY

The transfer case identification label (1) is located on the top of the front case half.
