Manifold Absolute Pressure Sensor Replacement (Engine LF3)

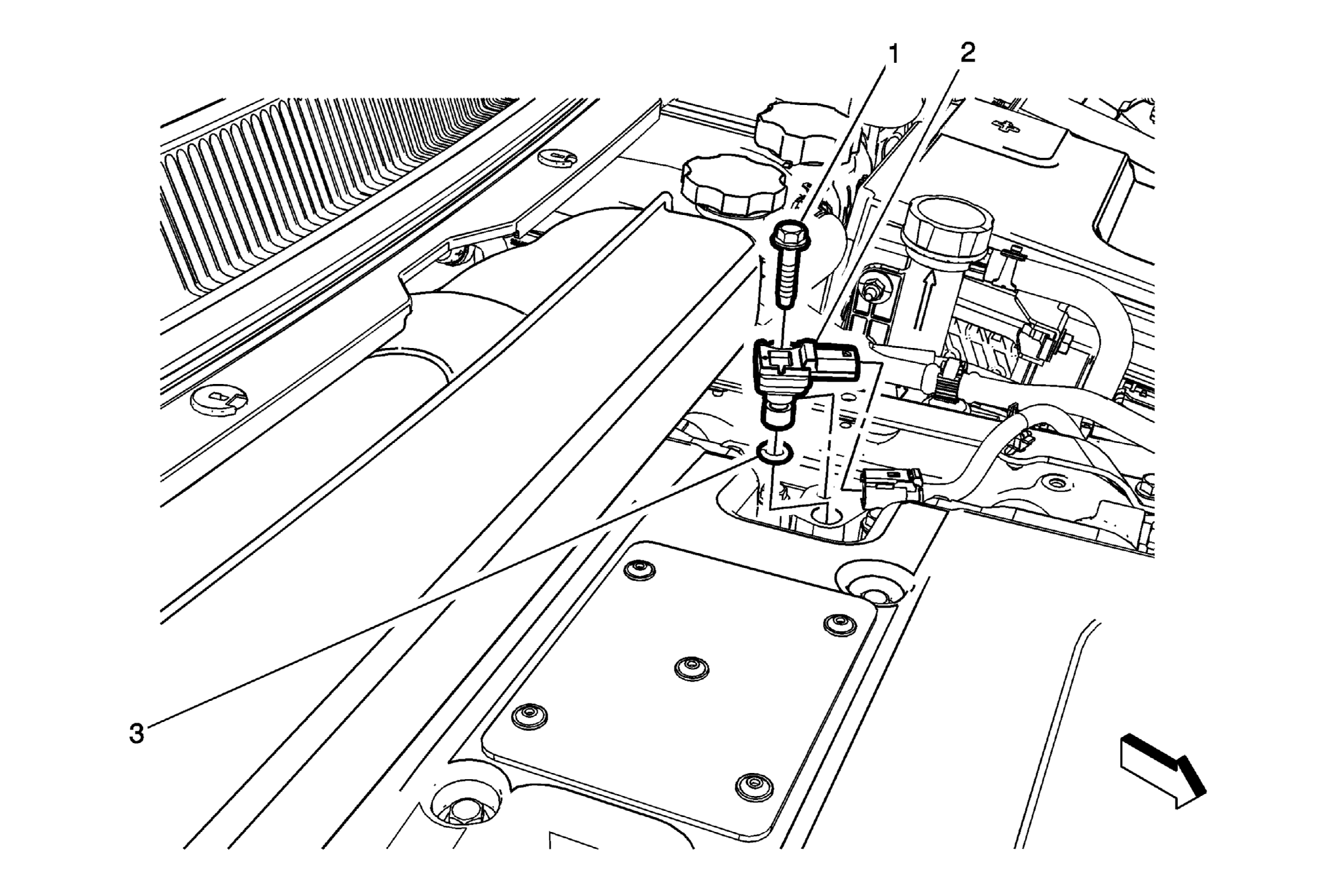

Fig 1: Manifold Absolute Pressure Sensor (Engine LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement (LF3)
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Manifold Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
3	Manifold Absolute Pressure Sensor Seal Procedure  The seal is reusable, inspect the seal and replace if damaged.
