Fuel Tank Protector Replacement (FWD)

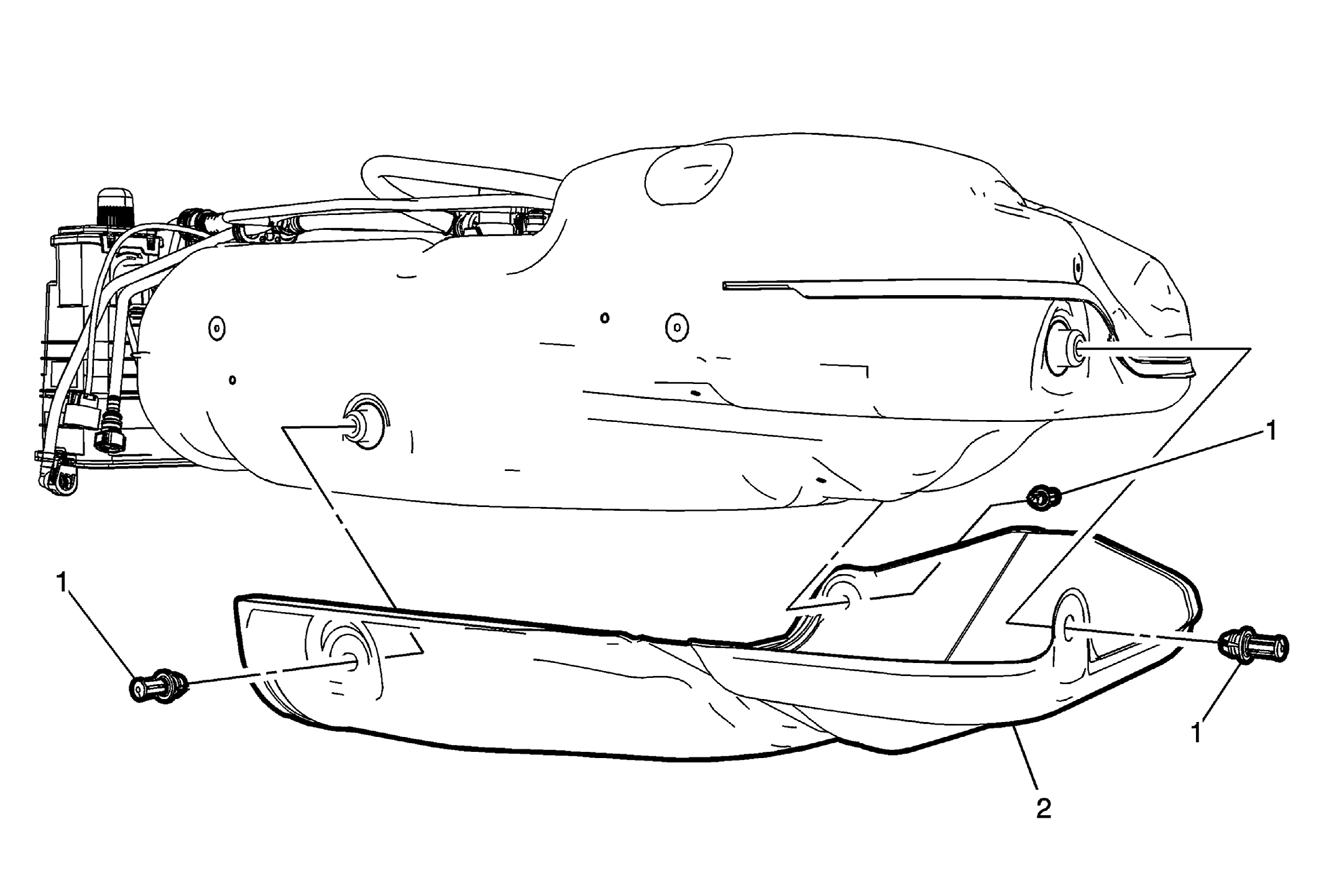

Fig 1: Fuel Tank Protector & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the left fuel tank strap and partially lower the tank on the left side. Refer to Fuel Tank Replacement (FWD) .
1	Fuel Tank Protector Retainers (Qty: 3)
2	Fuel Tank Protector
