Fuel Tank Protector Replacement (AWD)

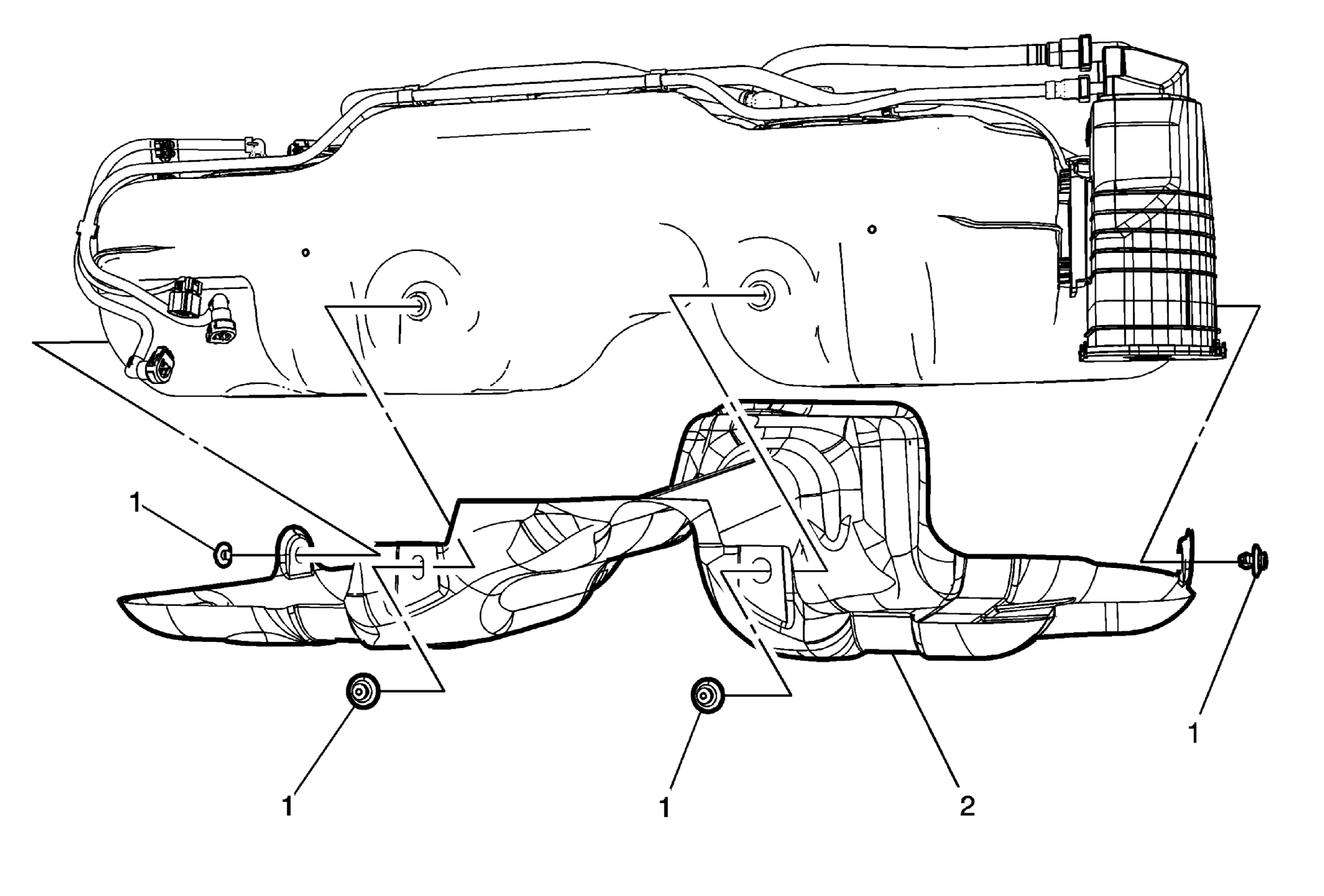

Fig 1: Fuel Tank Protector (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
1	Fuel Tank Protector Retainers (Qty: 4)
2	Fuel Tank Protector
