Fuel Tank Pressure Sensor Replacement (AWD)

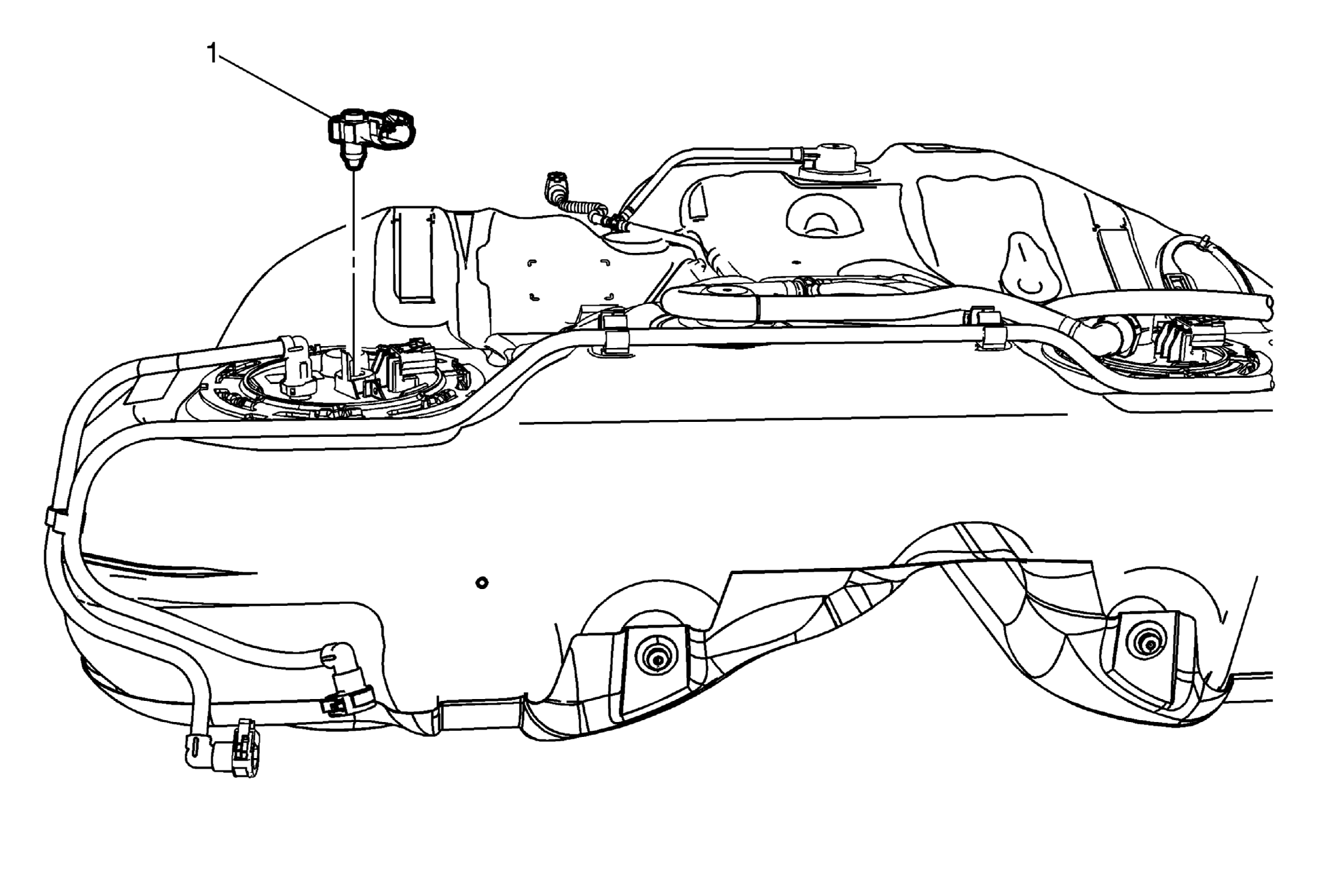

Fig 1: Fuel Tank Pressure Sensor (AWD)
GM2756279Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
1 Fuel Tank Pressure Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
