Head-Up Display Replacement

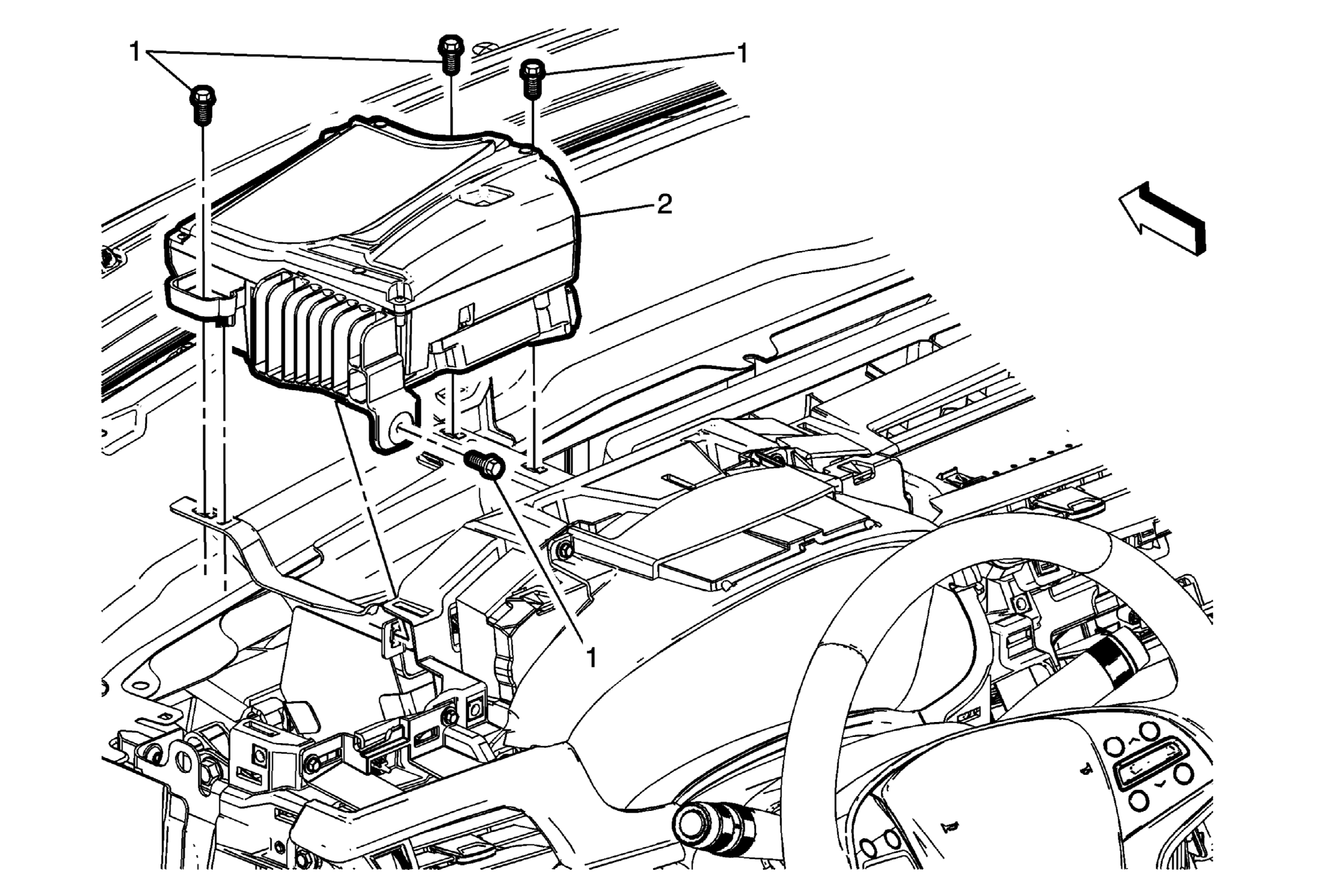

Fig 1: Head-Up Display
GM2761266Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1 Instrument Cluster Head Up Display Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Cluster Head Up Display
Procedure
Disconnect the electrical connections.
