Horn Replacement

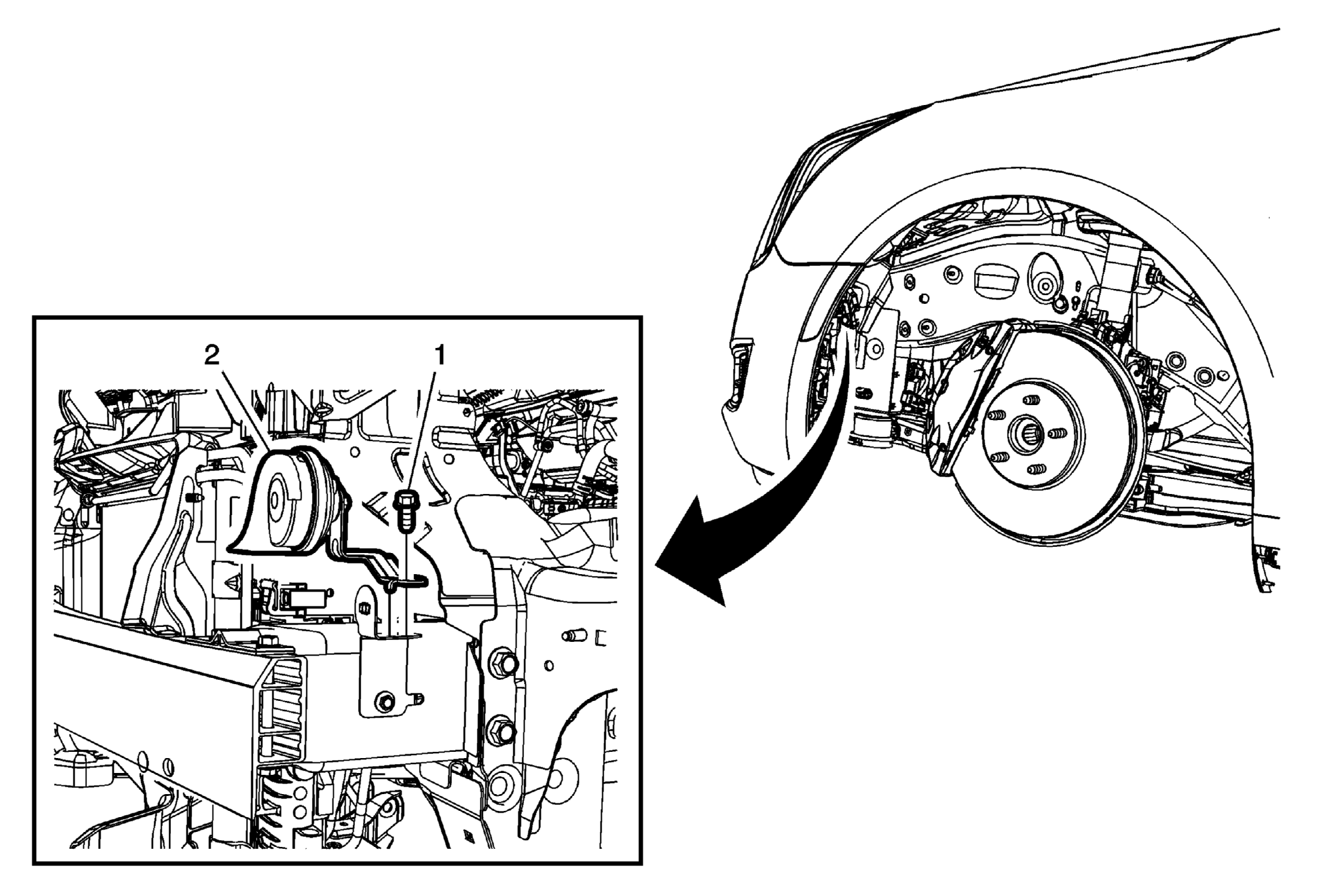

Fig 1: Horn & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Horn Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the right or left horn as needed. Tighten 2.5 N.m (22 lb in)
2	Horn Procedure Disconnect the electrical connector.
