Installation Procedure

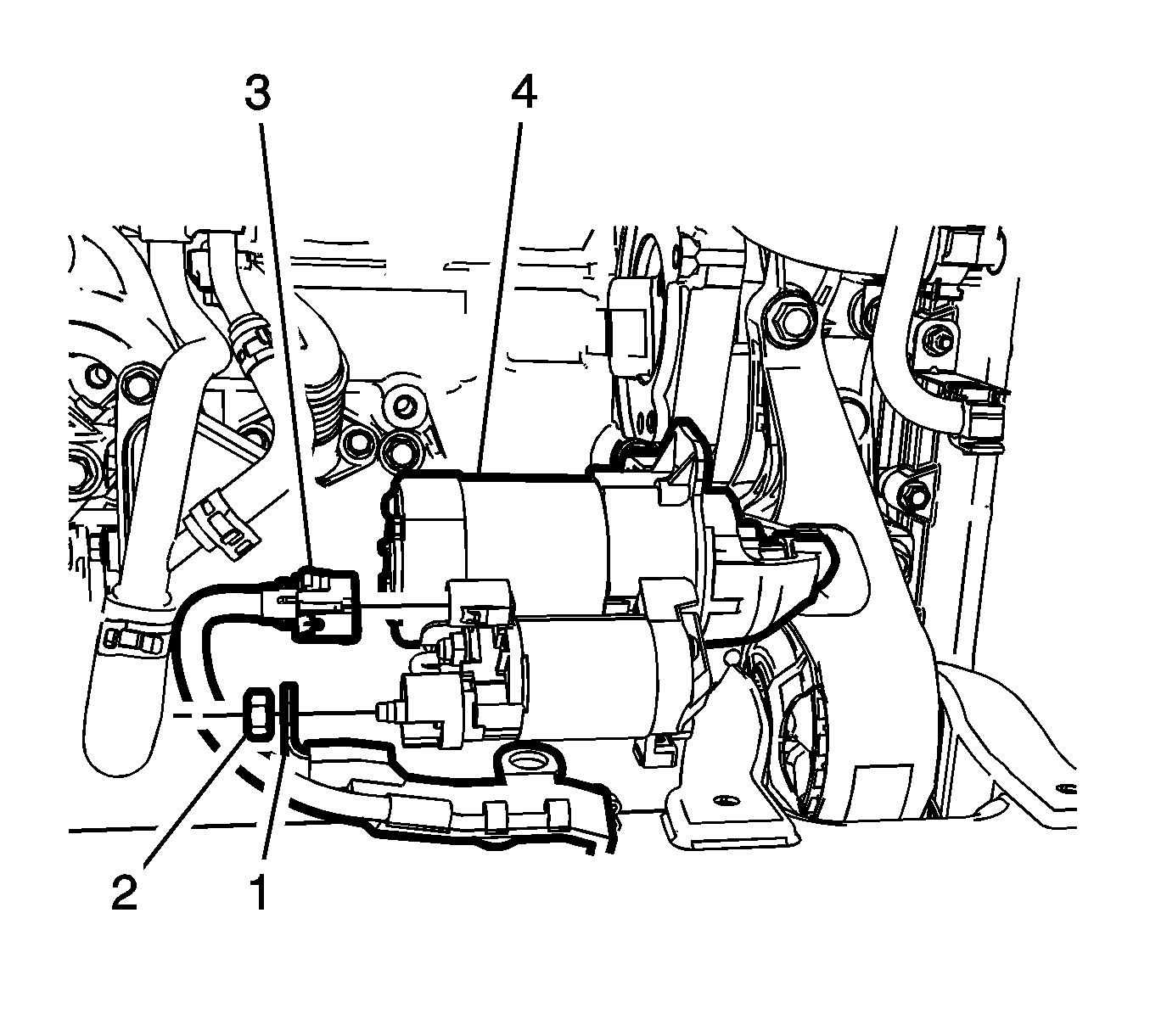

Fig 1: Battery Positive Cable Connector

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Connect the battery positive cable terminal (1) to the starter solenoid stud and tighten the fastener (2) to 9 N.m (80 lb in).
Connect the battery positive cable connector (3) to the starter solenoid.
Position the starter (4) into position on the bell housing.

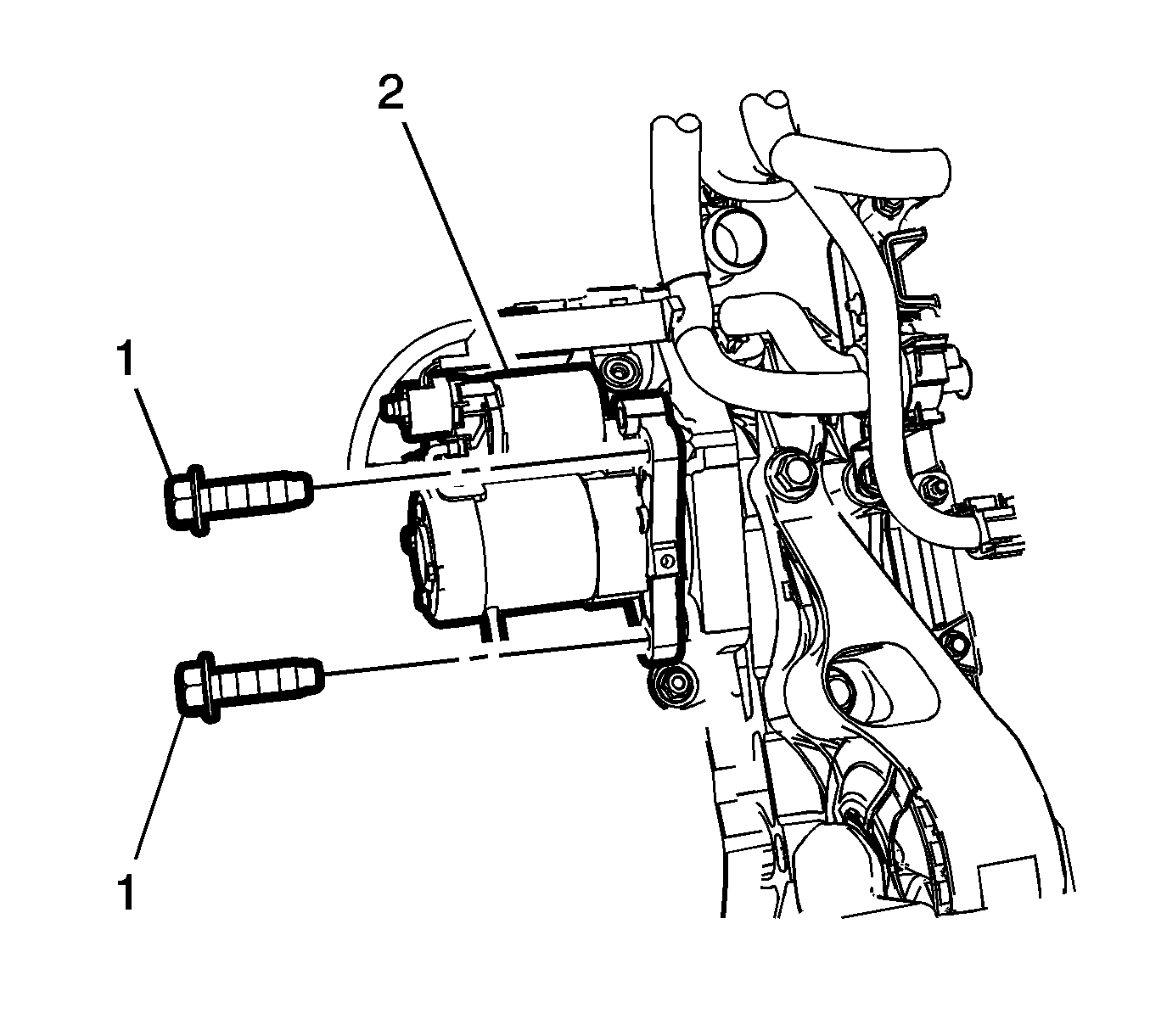

Fig 2: Starter Mounting Fasteners

Courtesy of GENERAL MOTORS COMPANY

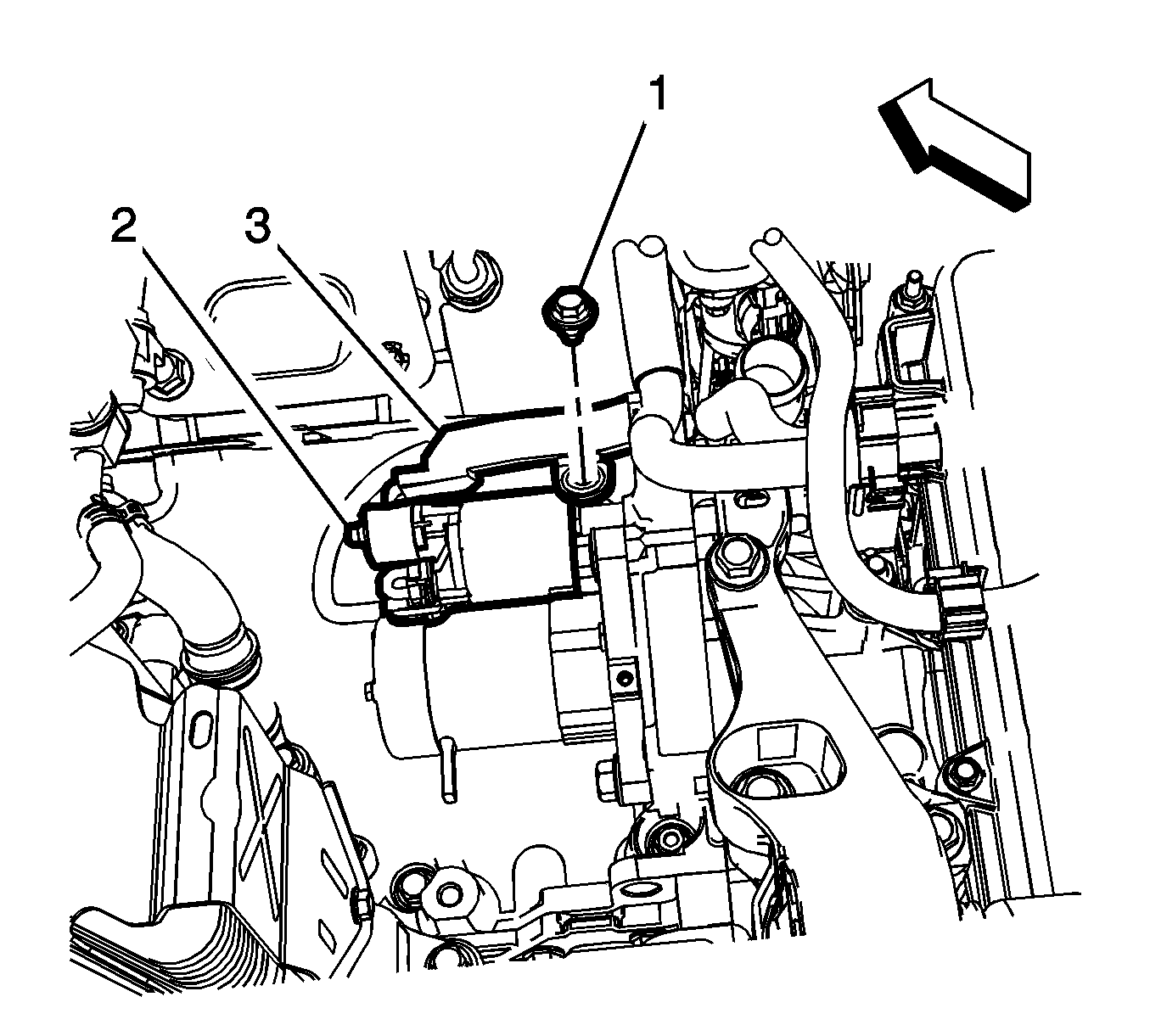

Fig 3: Cable Conduit Bracket

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable conduit bracket (3) to the starter solenoid (2) and tighten the fastener (1) to 9 N.m (80 lb in).

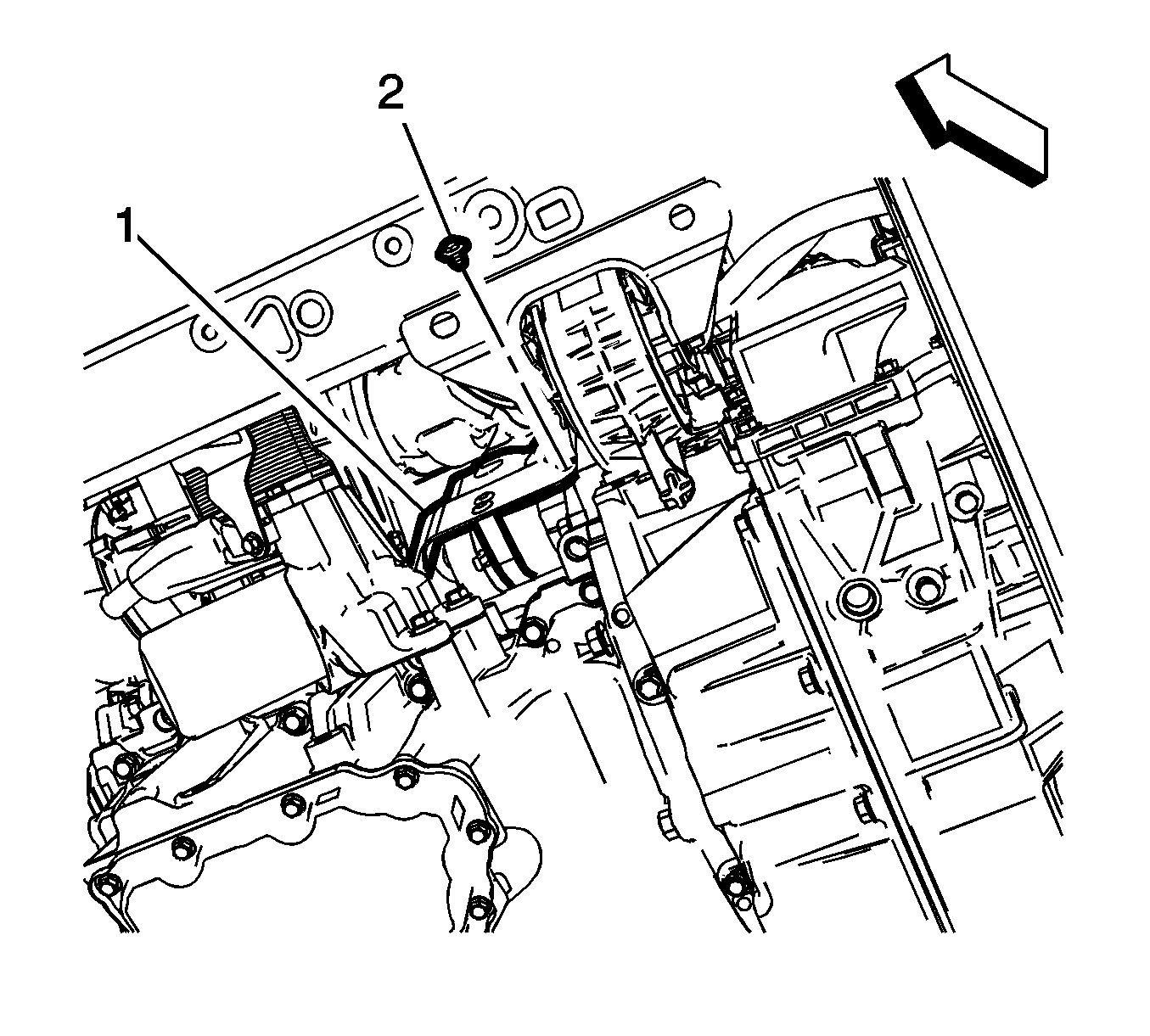

Fig 4: Starter Heat Shield Retaining Clip

Courtesy of GENERAL MOTORS COMPANY

Install the starter heat shield into position on the starter (1) with the retaining clip (2).

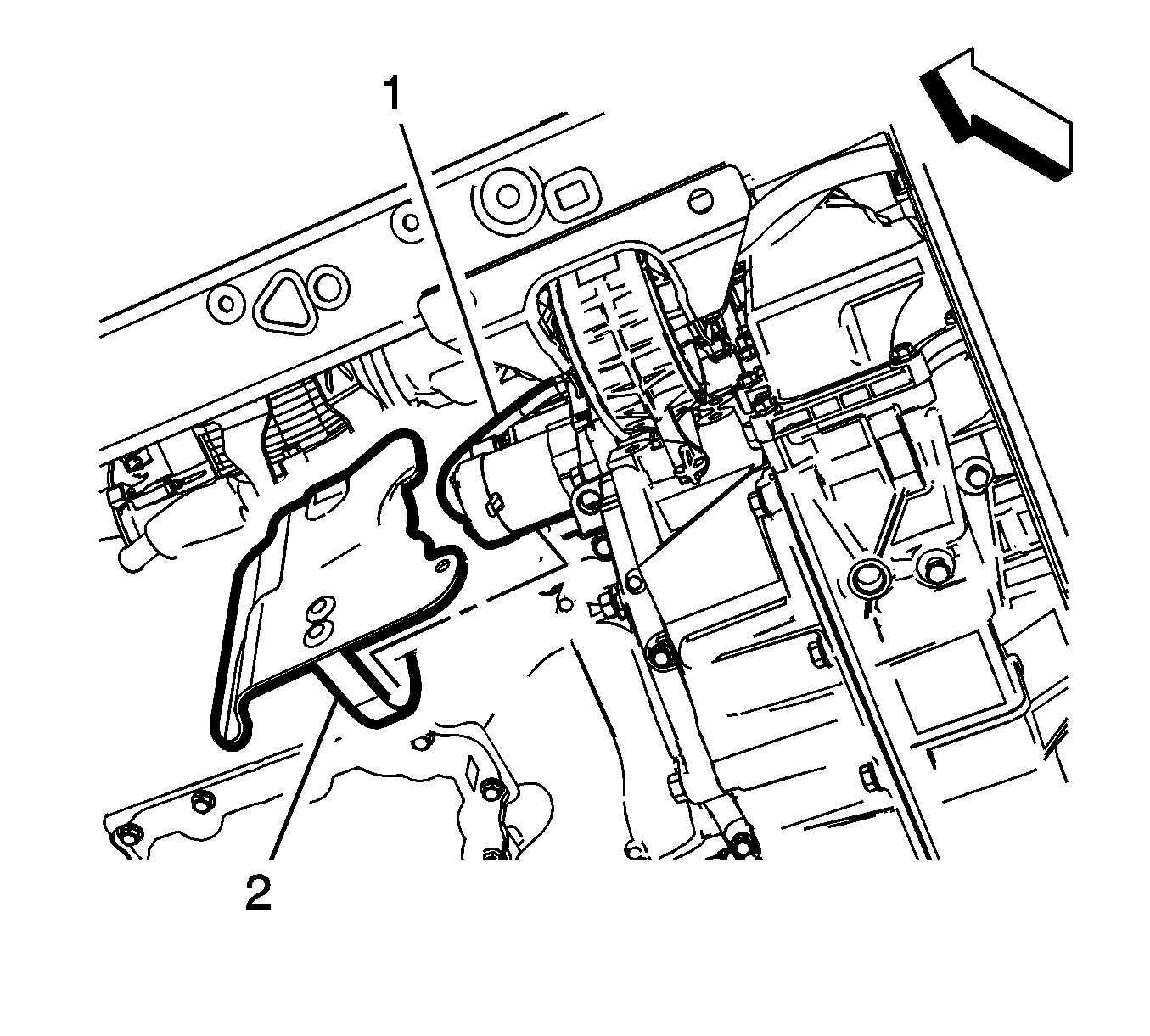

Fig 5: Starter Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Install the starter heat shield fastener (1) and tighten to 4.7 N.m (42 lb in).
Install the three-way catalytic converter. Refer to Three-Way Catalytic Converter Replacement (Front LF3)Three-Way Catalytic Converter Replacement (Rear LF3) .
Install the turbocharger heat shield. Refer to Turbocharger Heat Shield Replacement (Front)Turbocharger Heat Shield Replacement (Rear) .
Install the turbocharger wastegate actuator vacuum tank. Refer to Turbocharger Wastegate Actuator Vacuum Tank Replacement (LF3) .
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
