Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Remove the intake manifold cover. Intake Manifold Cover Replacement (LF3)
- Remove the front compartment front sight shield. Front Compartment Front Sight Shield Replacement
- Remove the right front compartment air deflector. Front Compartment Air Deflector Replacement (Right)Front Compartment Air Deflector Replacement (Left)
- Remove the air cleaner assembly. Air Cleaner Assembly Replacement (LF3)
- Reposition the power steering fluid reservoir. Power Steering Fluid Reservoir Replacement (LF3)
- Remove the radiator inlet hose. Radiator Inlet Hose Replacement (LF3)
- Install the engine support fixture. Engine Support Fixture (LF3)
- Remove the right side engine mount. Engine Mount Replacement - Right Side (LF3)

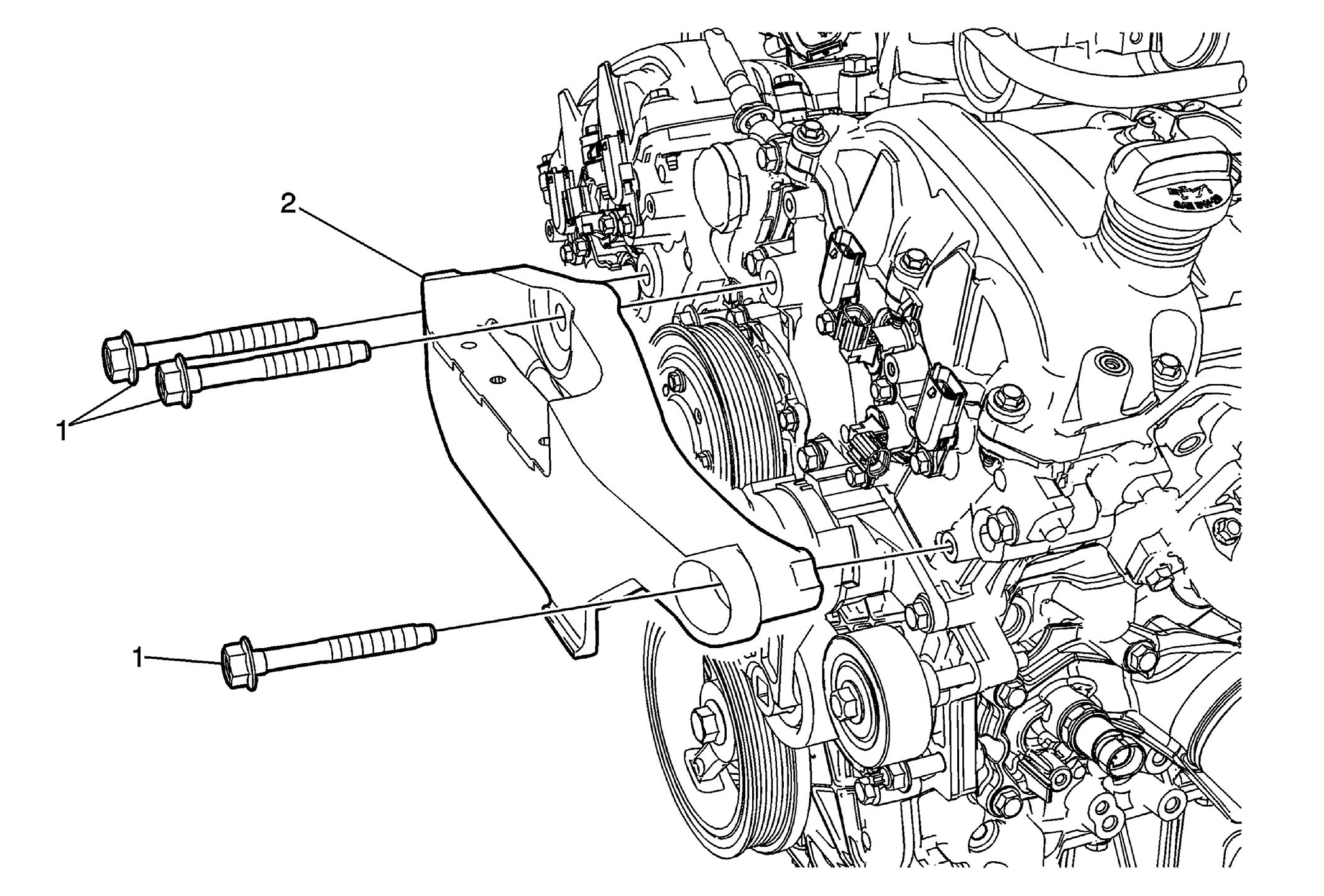

- Remove the right engine mount bracket. Engine Mount Bracket Replacement - Right Side
- Add a second engine support hook and D-ring to center hole of the engine mount bracket and attach it to the engine support fixture.
- Remove the engine support D-ring on the generator.
- Remove the drive belt. Drive Belt Replacement

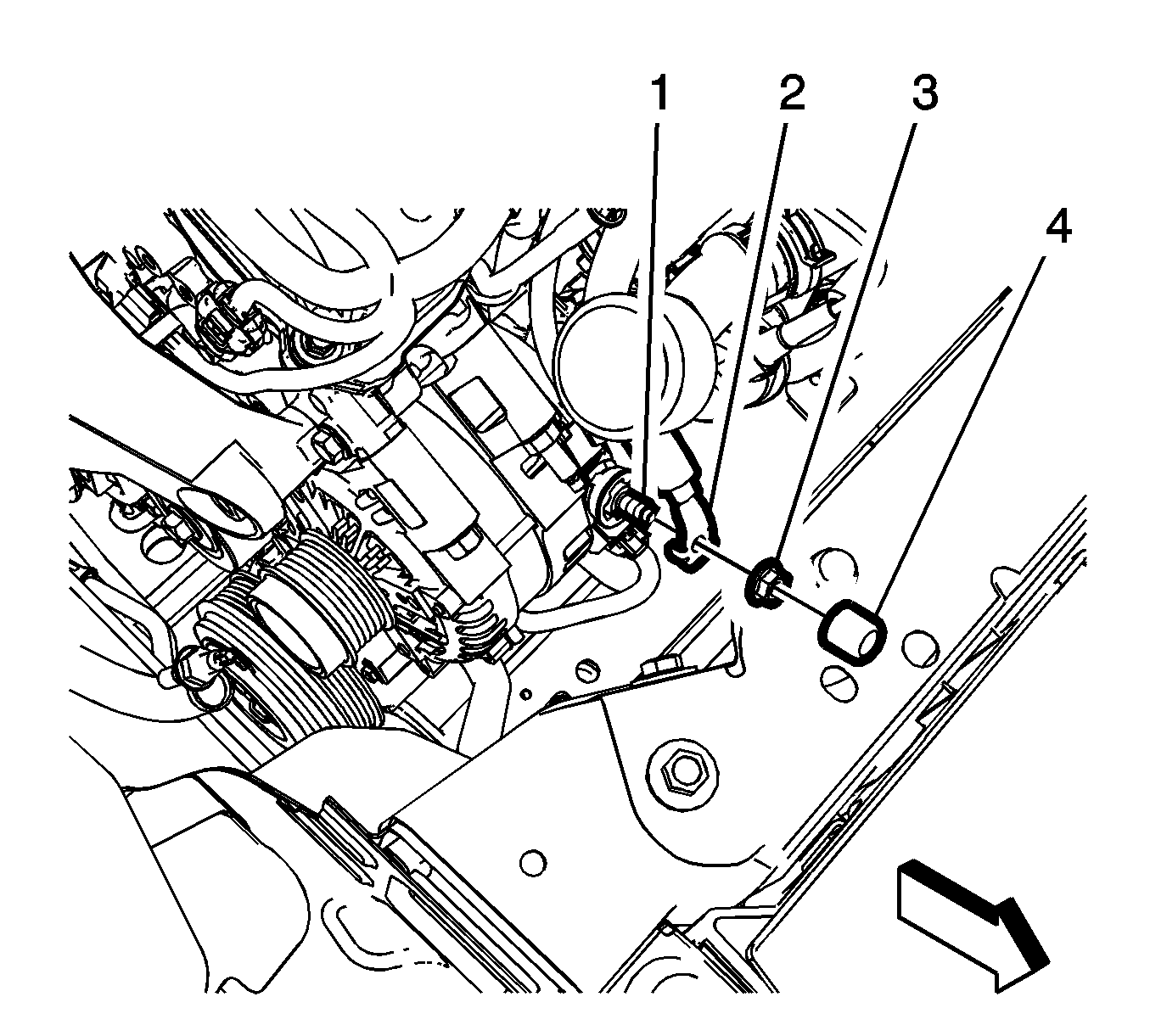

- Remove the protective cap (4) from the B + stud (1) at the front of the generator.
- Remove the fastener (3) and the battery positive cable terminal (2), from the generator.

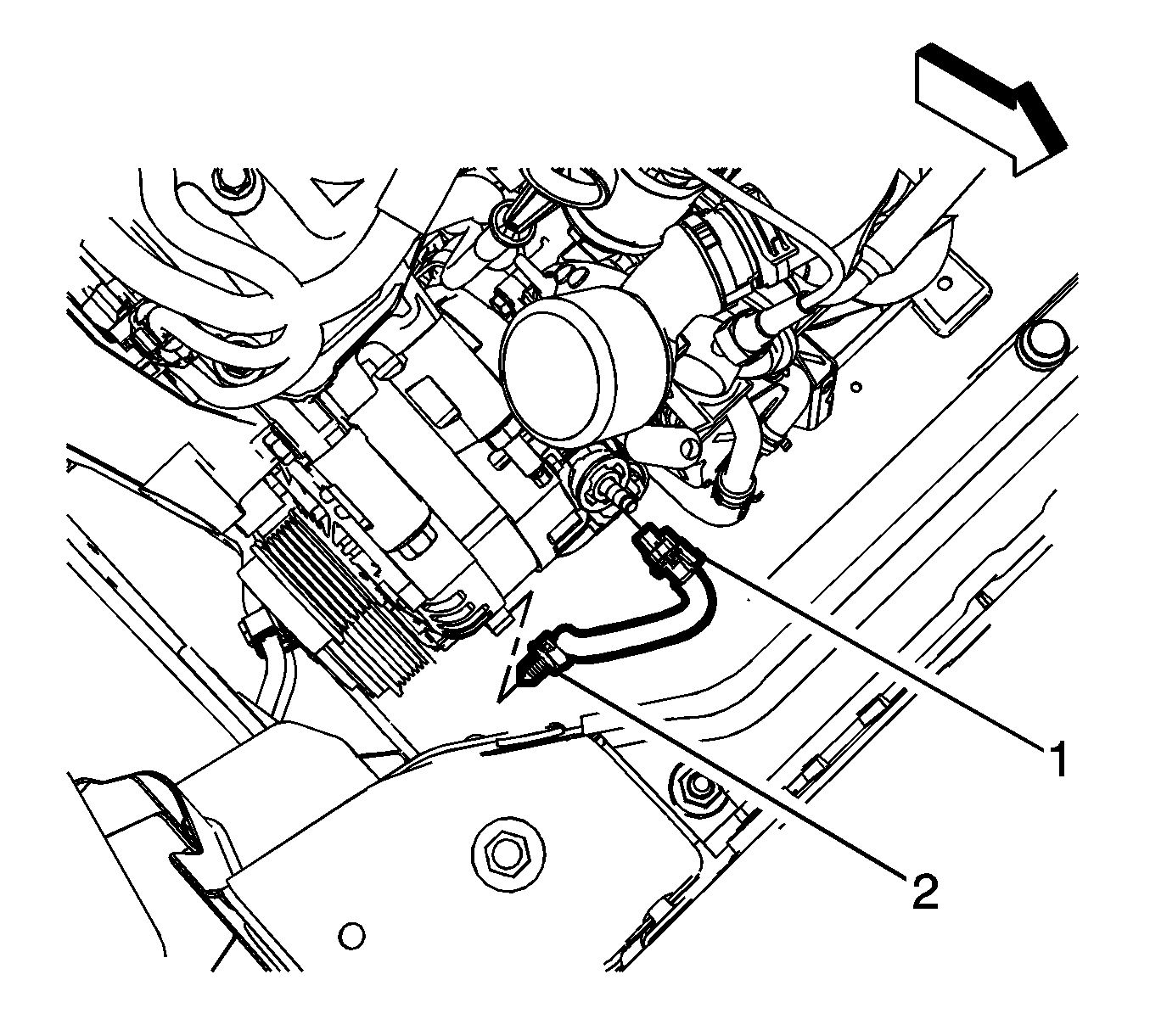

- Disconnect the engine harness connector (1) and detach the engine harness retainer (2), from the generator.

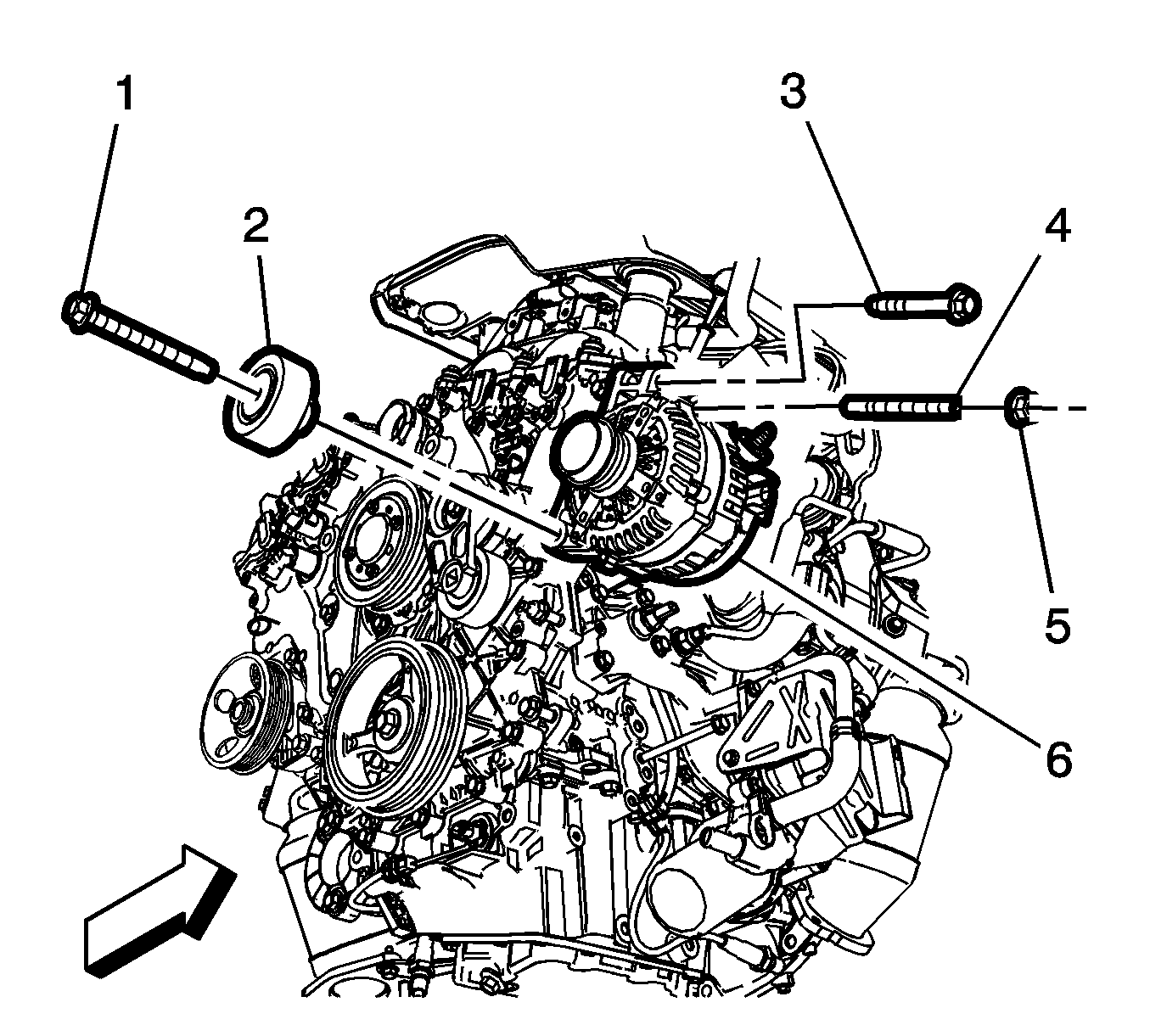

- Remove the generator mounting fastener (1) and the idler pulley (2).
- Remove the generator mounting fastener (5) and the mounting stud (4).
- Remove the generator mounting fastener (3) and remove the generator (6) from the engine compartment.
NOTE:
Take care not to get coolant on the drive belt.
