Installation Procedure

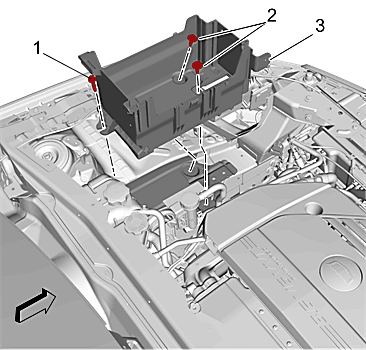

    Fig 1: Battery Tray Mounting Bolts
    GM4707764Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Tray (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Battery Tray Mounting Bolt (2) and tighten 15 N.m (11 lb ft)
  3. Install Battery Tray Mounting Bolt (1) and tighten 15 N.m (11 lb ft)

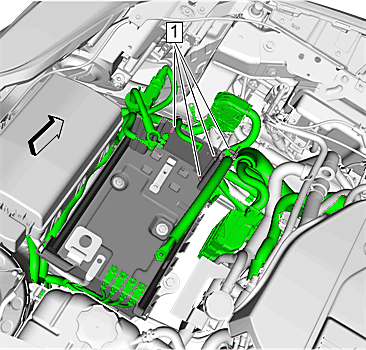

    4. Fig 2: Retainers
    GM4707759Courtesy of GENERAL MOTORS COMPANY
  4. Engage Retainer (1)
  5. Install the engine control module. Engine Control Module Replacement (LFX)Engine Control Module Replacement (LF3)
  6. Install the battery. Battery Replacement
  7. Install the battery current sensor to the battery tray.
