Battery Negative Cable Replacement

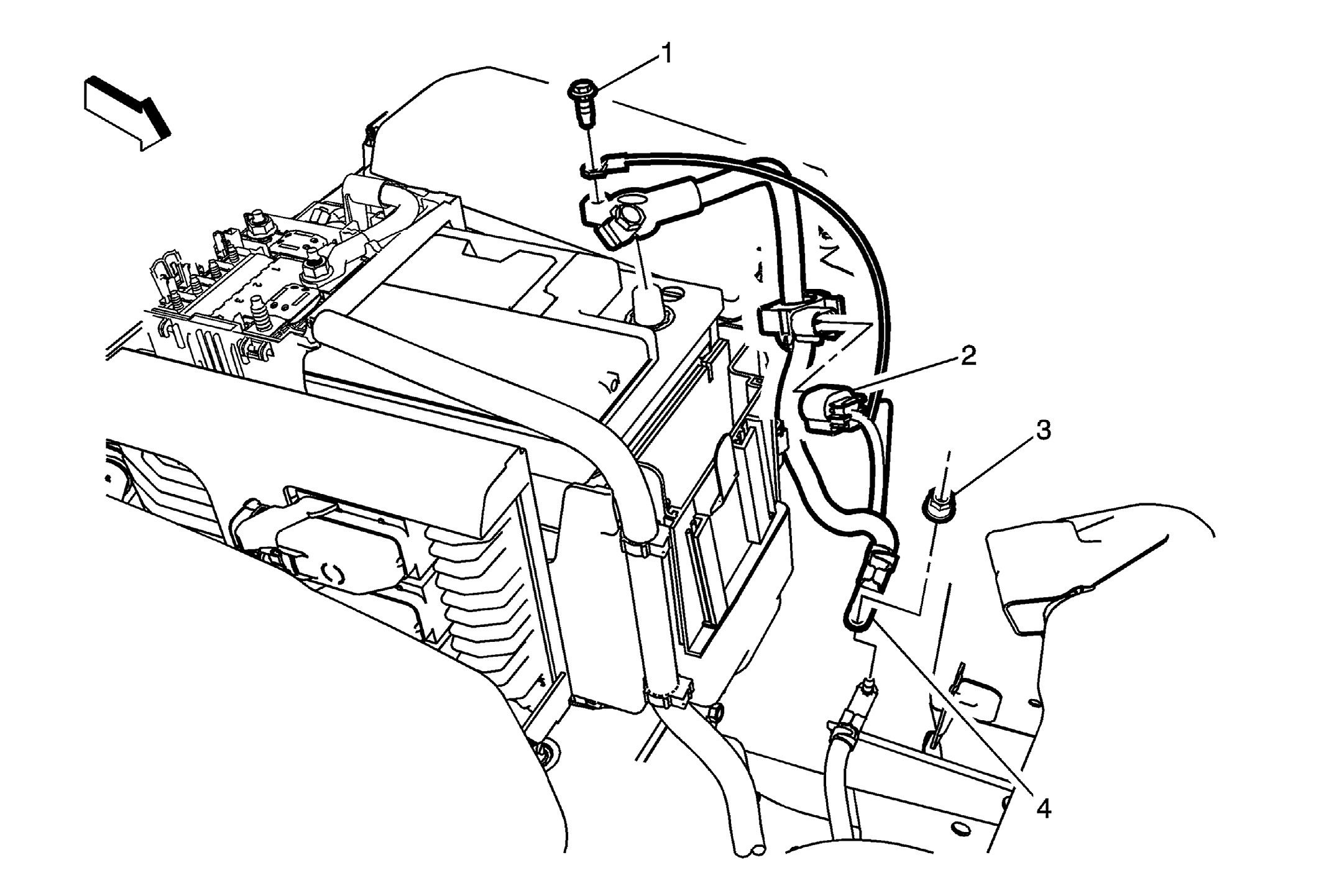

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Body Harness Ground Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Battery Current Sensor Connector
3	Battery Negative Cable Frame Ground Fastener Tighten 9 N.m (80 lb in)
4	Battery Negative Cable Procedure Mark the location of the battery current sensor on the battery negative cable. Transfer the current sensor to the NEW battery negative cable. Slide the battery current sensor onto the NEW battery negative cable and tape into place.
